Overview

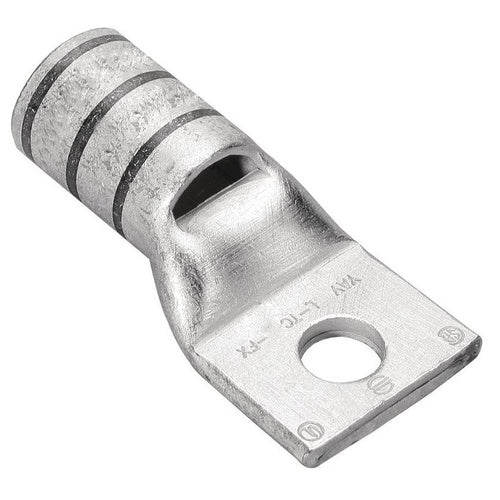

Burndy YAV4CL3BOX 4Awg Ring Lug

Product Specifications

• Catalog Description: COPPER COMPRESSION LUG, RING TONGUE, 1 HOLE W/INSPECTION HOLE, AN-4 FLEX, #8-#10 STUD, SHORT BARREL, TIN PLATED
• Full Technical Description: Beveled Entry, Seamless Barrel, Heavy Duty, Double Thick Straight Tongue Type; 4 AWG (Aircraft/Flex) Max. Conductor Size; UL, CSA Approval; #8 to #10 Stud Size; Non Insulated Insulation Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Size 1.37 Inch L X 0.55 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 1/2 Inch; Die Index 40; Used on An Type Aircraft Cable, Extra Flexible Conductor and Commercial Conductor; Packaging Type Box; YAV-LBOX Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Ring Lug
• UPC 12 Digit: 781810539255
• SKU Name: bur yav4cl3box
