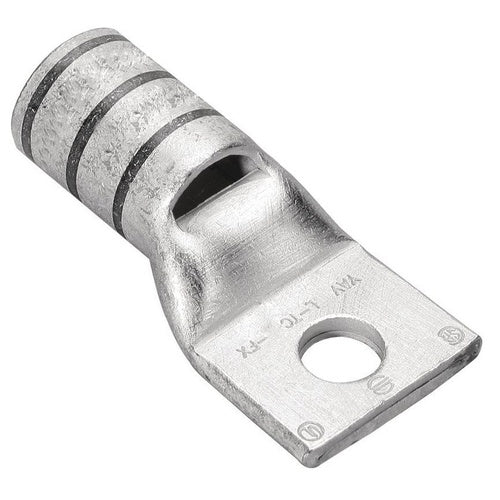

Burndy YAV4CLBOX 4Awg Ring Lug

Overview

Burndy YAV4CLBOX 4Awg Ring Lug

Product Specifications

• UPC: 78181053930
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Die Index: 40
• Material: Electro-Tin Plated Copper
• Overall Length: 1.37 Inch
• Approval: UL 467, CSA
• Additional Information: RoHS Compliant; Connector Type Terminal; Cable Entry Type Chamfered; Tongue Type Ring; Wire Strip Length 1/2 Inch
• Catalog Number: YAV4CLBOX
• Brand Name: Burndy
• Model: YAV-L
• Conductor Material: Copper
• Conductor Size: 4 AWG, AN 4 Aircraft Stranded (Flex)
• Barrel Type: Short, Skived, Straight
• Barrel Length: 0.47 Inch
• Pad Size: 0.55 Inch Width
• Catalog Description: COPPER COMPRESSION LUG, RING TONGUE, 1 HOLE W/ INSPECTION HOLE, AN-4 FLEX, 1/4" STUD, SHORT BARREL, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; 1.37 Inch Overall Length; 0.47 Inch Barrel Length; Copper Conductor Material; UL 467, CSA Approval; 4 AWG, An 4 Aircraft Stranded (Flex) Conductor Size; 1/4 Inch Stud Size; 40 Die Index; 0.55 Inch Width Pad Size; 1 Pad Hole(S); Short, Skived, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compliant; Connector Type Terminal; Cable Entry Type Chamfered; Tongue Type Ring; Wire Strip Length 1/2 Inch; YAV-L Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810539309
• SKU Name: bur yav4clbox
