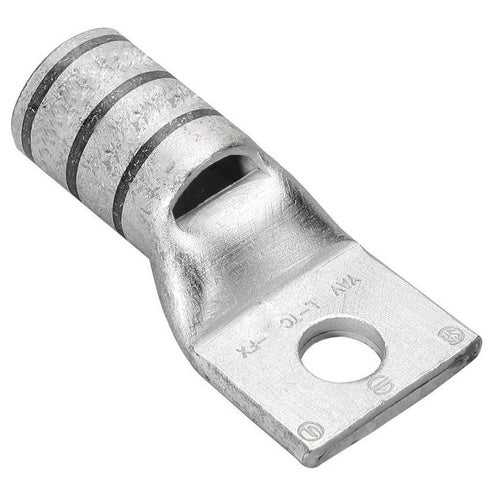

Burndy YAV6CL1BOX 6Awg Ring Lug

Product Specifications

• UPC: 78181053900
• Additional Information: RoHS Compatible; Dimension 1.31 Inch L x 0.46 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 1/2 Inch; Die Index 39; Used On AN Type Aircraft Cable, Extra Flexible Conductor and Commercial Conductor
• Catalog Number: YAV6CL1BOX
• Brand Name: HYLUG[TM]
• Model: YAV-L BOX
• Type: Beveled, Heavy Duty
• Maximum Conductor Size: 5 AWG, 6 AWG (Aircraft/Flex)
• Insulation Type: Non-Insulated
• Stud Size: #8 to #10
• Approval: UL, CSA
• Catalog Description: HYLUG, 6 AWG, 8-10, 1.31 IN L, .46 IN W, TIN- ELECTRO PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Beveled, Heavy Duty Type; 5 AWG, 6 AWG (Aircraft/Flex) Max. Conductor Size; UL, CSA Approval; #8 to #10 Stud Size; Non-Insulated Insulation Type; HYLUG[TM] Brand; RoHS Compatible; Dimension 1.31 Inch L X 0.46 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 1/2 Inch; Die Index 39; Used on An Type Aircraft Cable, Extra Flexible Conductor and Commercial Conductor; YAV-L BOX Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810539002
• SKU Name: bur yav6cl1box
