Overview

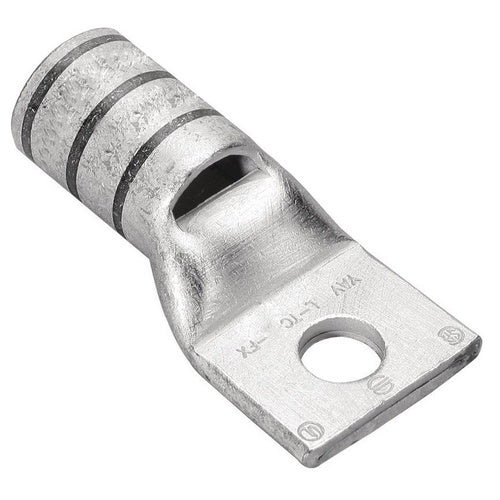

Burndy YAV6CL2BOX 6Awg Ring Lug

Product Specifications

• Catalog Description: COPPER COMPRESSION LUG, RING TONGUE, 1 HOLE W/ INSPECTION HOLE, AN-5 FLEX/ AN-6 FLEX, 3/8" STUD, SHORT BARREL, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Beveled, Heavy Duty Type; 5 AWG, 6 AWG (Aircraft/Flex) Max. Conductor Size; UL, CSA Approval; 3/8 Inch Stud Size; Non-Insulated Insulation Type; HYLUG[TM] Brand; RoHS Compatible; Dimension 1.43 Inch L X 0.6 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 1/2 Inch; Die Index 39; Used on An Type Aircraft Cable, Extra Flexible Conductor and Commercial Conductor; YAV-L BOX Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810539156
• SKU Name: bur yav6cl2box
