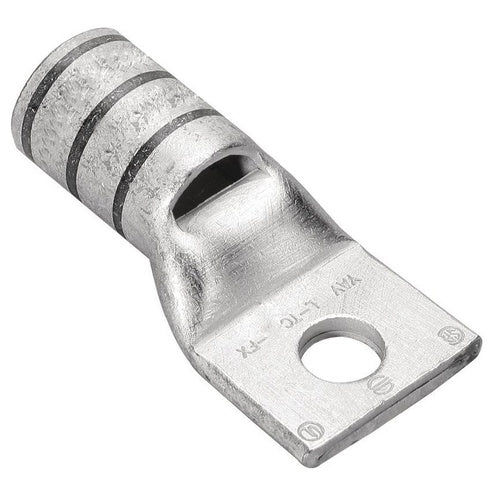

Burndy YAV8C-L1-BOX 8Awg Ring Lug

Overview

Burndy YAV8C-L1-BOX 8Awg Ring Lug

Product Specifications

• UPC: 78181054120
• Additional Information: RoHS Compatible; Dimension 1.22 Inch L x 0.46 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 1/2 Inch; Die Index 38; Used On AN Type Aircraft Cable, Extra Flexible Conductor and Commercial Conductor
• Catalog Number: YAV8CL1BOX
• Brand Name: HYLUG[TM]
• Model: YAV-L BOX
• Type: Beveled, Heavy Duty
• Maximum Conductor Size: 8 AWG (Aircraft/Flex)
• Insulation Type: Non-Insulated
• Stud Size: 1/4 Inch
• Approval: UL, CSA
• Catalog Description: COPPER COMPRESSION LUG, HEAVY DUTY, RING TONGUE, 1 HOLE W/ INSPECTION WINDOW, AN 8 FLEX, 1/4" STUD, SHORT BARREL, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Beveled, Heavy Duty Type; 8 AWG (Aircraft/Flex) Max. Conductor Size; UL, CSA Approval; 1/4 Inch Stud Size; Non-Insulated Insulation Type; HYLUG[TM] Brand; RoHS Compatible; Dimension 1.22 Inch L X 0.46 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 1/2 Inch; Die Index 38; Used on An Type Aircraft Cable, Extra Flexible Conductor and Commercial Conductor; YAV-L BOX Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810541203
• SKU Name: bur yav8cl1box
