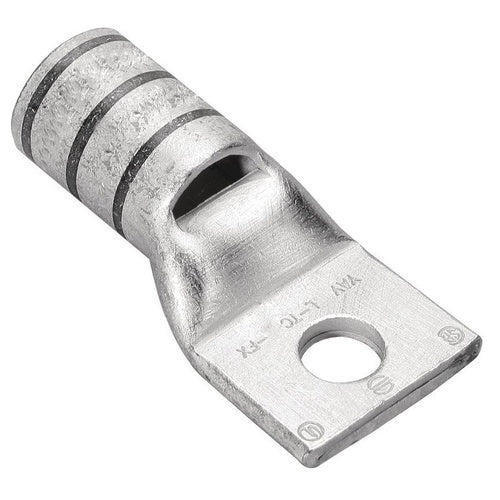

Burndy YAV8CL2BOX 8Awg Ring Lug

Product Specifications

• Catalog Description: COPPER COMPRESSION LUG, HEAVY DUTY, RING TONGUE, 1-HOLE, INSPECTION WINDOW, AN 8 FLEX, 5/16" STUD, STANDARD BARREL, TIN PLATED
• Full Technical Description: Beveled, Heavy Duty Type; 8 AWG (Aircraft/Flex) Max. Conductor Size; UL, CSA Approval; 5/16 Inch Stud Size; Non-Insulated Insulation Type; HYLUG[TM] Brand; RoHS Compatible; Dimension 1.3 Inch L X 0.57 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 1/2 Inch; Die Index 38; Used on An Type Aircraft Cable, Extra Flexible Conductor and Commercial Conductor; YAV-L BOX Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Ring Lug
• UPC 12 Digit: 781810541302
• SKU Name: bur yav8cl2box
