Burndy YAZ1CTC12 1-Hole Compression Lug

Overview

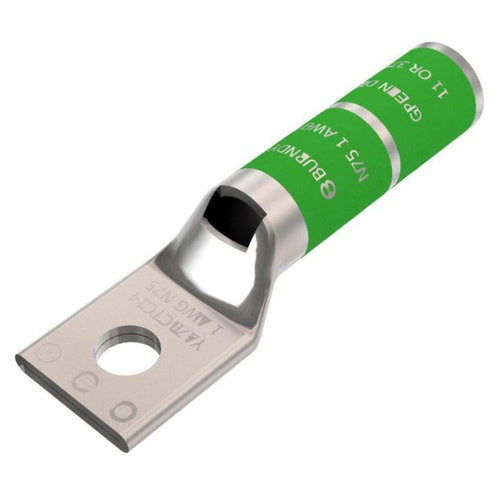

Burndy YAZ1CTC12 1-Hole Compression Lug

Product Specifications

• Catalog Description: 1 AWG CU, ONE HOLE, 1/2 STUD SIZE, LONG BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, GREEN COLOR CODE, 11 OR 375 DIE INDEX.
• Full Technical Description: Electro Tin Plated Copper Material; Green Color; 2.81 Inch Overall Length; 1.38 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 1 AWG Stranded, 75 Navy Conductor Size; 1/2 Inch Stud Size; 11/375 Die Index; 0.73 Inch W X 0.09 Inch Thk Pad Size; 1 Pad Hole(S); Long, Skived, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Beveled, Chamfered; Wire Strip Length 1 7/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YAZ Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810239797
• SKU Name: bur yaz1ctc12

Resources

• Manufacturer Spec Sheet
