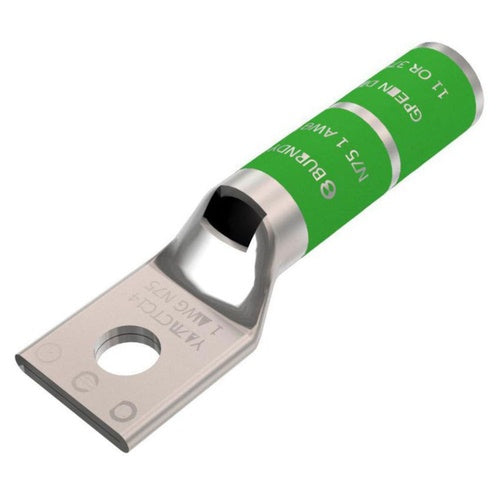

Burndy YAZ1C-TC38 1-Hole Compression Lug

Product Specifications

• UPC: 78181023976
• Pad Size: 0.68 Inch W x 0.1 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Color: Green
• Die Index: 11/375
• Material: Electro-Tin Plated Copper
• Overall Length: 2.56 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-7/16 Inch
• Catalog Number: YAZ1CTC38
• Brand Name: HYLUG[TM]
• Model: YAZ
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 75 (Navy), 1 AWG Stranded (Code)
• Barrel Type: Long, Skived, Straight
• Barrel Length: 1.38 Inch
• Catalog Description: 1 AWG CU, ONE HOLE, 3/8 STUD SIZE, LONG BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, GREEN COLOR CODE, 11 OR 375 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Green Color; 2.56 Inch Overall Length; 1.38 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 75 (Navy), 1 AWG Stranded (Code) Conductor Size; 3/8 Inch Stud Size; 11/375 Die Index; 0.68 Inch W X 0.1 Inch Thk Pad Size; 1 Pad Hole(S); Long, Skived, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-7/16 Inch; YAZ Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810239766
• SKU Name: bur yaz1ctc38
