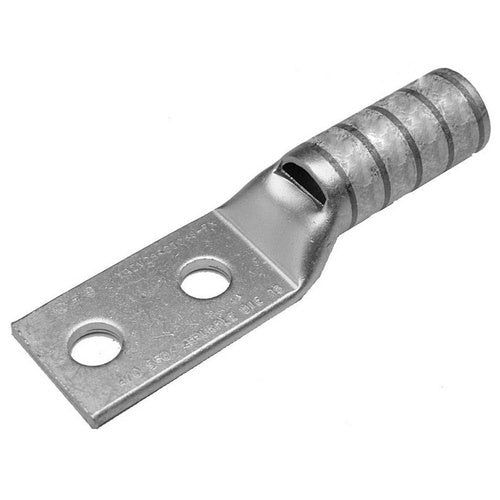

Burndy YAZ342NTCFX 373.3Kcm 2-Hole Long Lug

Product Specifications

• UPC: 78181016602
• Pad Size: 1.55 Inch W x 0.23 Inch Thk
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Color: Blue
• Die Index: 19/470
• Material: Electro-Tin Plated Copper
• Overall Length: 6.04 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 2-5/16 Inch; Cable Entry Type Chamfered
• Catalog Number: YAZ342NTCFX
• Brand Name: HYLUG[TM]
• Model: YAZ-FX
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 925/24, 373.3 KCMIL (Flex), 350 KCMIL (Nom)
• Barrel Type: Long, Skived, Straight
• Barrel Length: 2.25 Inch
• Catalog Description: 350 KCMIL G,H,I,K,M,373 DLO CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, LONG BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLUE COLOR CODE, 19 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Blue Color; 6.04 Inch Overall Length; 2.25 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 925/24, 373.3 kcmil (Flex), 350 kcmil (NOM) Conductor Size; 1/2 Inch Stud Size; 19/470 Die Index; 1.55 Inch W X 0.23 Inch Thk Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Long, Skived, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 2-5/16 Inch; Cable Entry Type Chamfered; YAZ-FX Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810166024
• SKU Name: bur yaz342ntcfx
