Product information
Overview

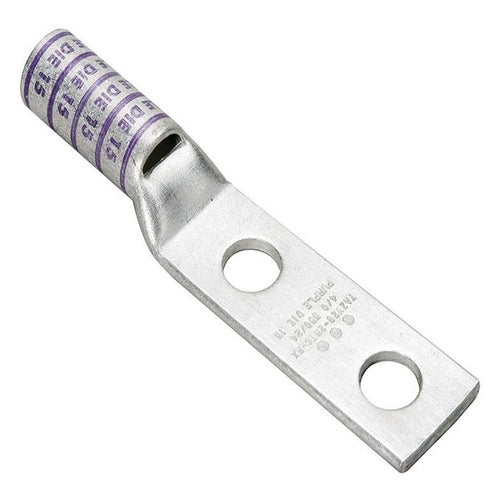

Burndy YAZ3C2N 3Awg2Sol 2-Hole Long Lug
Product Specifications
- UPC: 78181022766
- Pad Size: 0.83 Inch W x 0.12 Inch Thk
- Number Of Pad Holes: 2
- Pad Hole Spacing: 1-3/4 Inch
- Stud Size: 1/2 Inch
- Color: White
- Die Index: 9
- Material: Electro-Tin Plated Copper
- Overall Length: 4.62 Inch
- Approval: UL 468A/468B, CSA
- Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-5/16 Inch
- Catalog Number: YAZ3C2N
- Brand Name: HYLUG[TM]
- Model: YAZ-2N
- Voltage Rating: 600 V to 35 kV
- Conductor Material: Copper
- Conductor Size: 50 (Navy), 2 AWG Solid, 3 AWG Stranded (Code)
- Barrel Type: Long, Skived, Straight
- Barrel Length: 1.25 Inch
- Catalog Description: 3 AWG CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, LONG BARREL, INSPECTION WINDOW INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, WHITE COLOR CODE, 9 DIE INDEX.
- Category: Large Terminals & Connectors
- Full Technical Description: Electro-Tin Plated Copper Material; White Color; 4.62 Inch Overall Length; 1.25 Inch Barrel Length; Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 50 (Navy), 2 AWG Solid, 3 AWG Stranded (Code) Conductor Size; 1/2 Inch Stud Size; 9 Die Index; 0.83 Inch W X 0.12 Inch Thk Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Long, Skived, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-5/16 Inch; YAZ-2N Model
- Made In Usa: Yes
- Manufacturer: BURNDY PRODUCTS
- Manufacturer Brand: Burndy Products
- Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Sub Category: Compression Cable Lug
- Unspsc: 39121405
- UPC 12 Digit: 781810227664
- SKU Name: bur yaz3c2n
