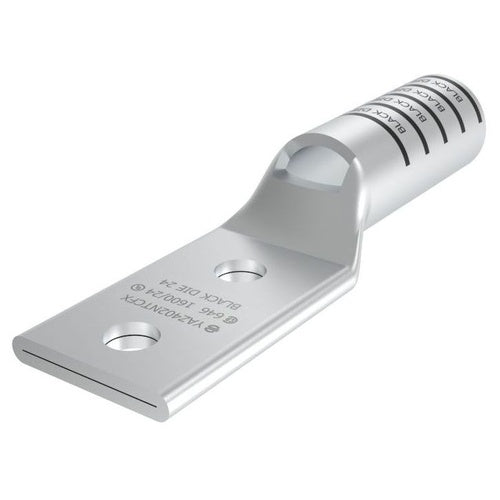

Burndy YAZ442NNTFX 1000Kcm 2-Hole Long Lug

Overview

Burndy YAZ442NNTFX 1000Kcm 2-Hole Long Lug

Product Specifications

• UPC: 78181016614
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Yellow
• Die Index: L115
• Material: Tin Plated Copper
• Overall Length: 7.09 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 3-1/16 Inch
• Catalog Number: YAZ442NNTFX
• Brand Name: HYLUG[TM]
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 750 KCMIL, 777.7 KCMIL, 1925/24 Stranded (Flex)
• Barrel Type: Long, Skived, Straight
• Barrel Length: 3 Inch
• Pad Size: 1.62 Inch W x 0.33 Inch Thk
• Catalog Description: HYLUG COPPER COMPRESSION TERMINAL; NARROW TONGUE; 2-HOLE; LONG BARREL; ACCOMMODATES: 777.7 KCMIL; STUD: 1/2"; STUD SPACING: 1-3/4"; LENGTH: 7.09"; WIDTH: 1.63.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Yellow Color; 7.09 Inch Overall Length; 3 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 750 kcmil, 777.7 kcmil, 1925/24 Stranded (Flex) Conductor Size; 1/2 Inch Stud Size; L115 Die Index; 1.62 Inch W X 0.33 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Skived, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 3-1/16 Inch
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810166147
• SKU Name: bur yaz442nntfx
