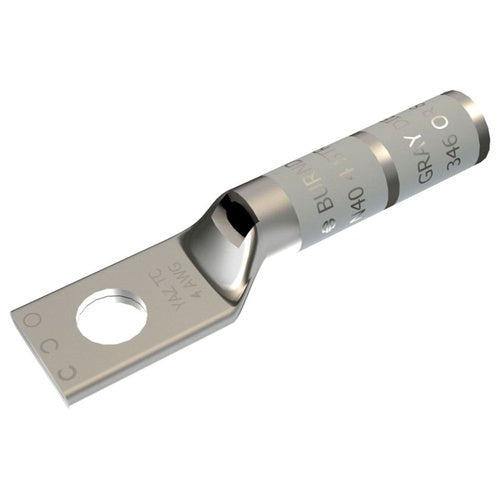

Burndy YAZ4CTC12 1-Hole Compression Lug

Overview

Burndy YAZ4CTC12 1-Hole Compression Lug

Product Specifications

• Catalog Description: 4 AWG CU, ONE HOLE, 1/2 STUD SIZE, LONG BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, GRAY COLOR CODE, 8 OR 346 DIE INDEX.
• Full Technical Description: Electro-Tin Plated Copper Material; Gray Color; 2.5 Inch Overall Length; 1.12 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 4 AWG Stranded (Code) Conductor Size; 1/2 Inch Stud Size; 8/346 Die Index; 0.73 Inch W X 0.06 Inch Thk Pad Size; 1 Pad Hole(S); Long, Skived, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-3/16 Inch; YAZ Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810239537
• SKU Name: bur yaz4ctc12

Resources

• Manufacturer Spec Sheet
