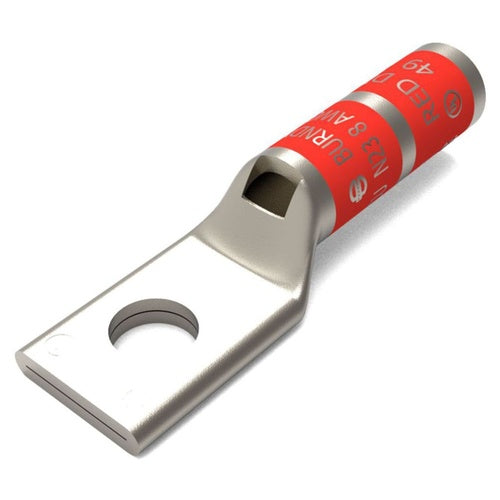

Burndy YAZ8C-TC38 1-Hole Compression Lug 25020321

Overview

Burndy YAZ8C-TC38 1-Hole Compression Lug 25020321

Product Specifications

• UPC: 78181023933
• Pad Size: 0.58 Inch W x 0.06 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Color: Red
• Die Index: 49
• Material: Electro-Tin Plated Copper
• Overall Length: 1.75 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 13/16 Inch
• Catalog Number: YAZ8CTC38
• Brand Name: HYLUG[TM]
• Model: YAZ
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 37/24, 8 AWG (Weld), 6 AWG Solid, 8 AWG Stranded/Solid (Code)
• Barrel Type: Long, Skived, Straight
• Barrel Length: 0.75 Inch
• Catalog Description: 8 AWG CU, ONE HOLE, 3/8 STUD SIZE, LONG BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, RED COLOR CODE, 49 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Red Color; 1.75 Inch Overall Length; 0.75 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 37/24, 8 AWG (Weld), 6 AWG Solid, 8 AWG Stranded/Solid (Code) Conductor Size; 3/8 Inch Stud Size; 49 Die Index; 0.58 Inch W X 0.06 Inch Thk Pad Size; 1 Pad Hole(S); Long, Skived, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 13/16 Inch; YAZ Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810239339
• SKU Name: bur yaz8ctc38
