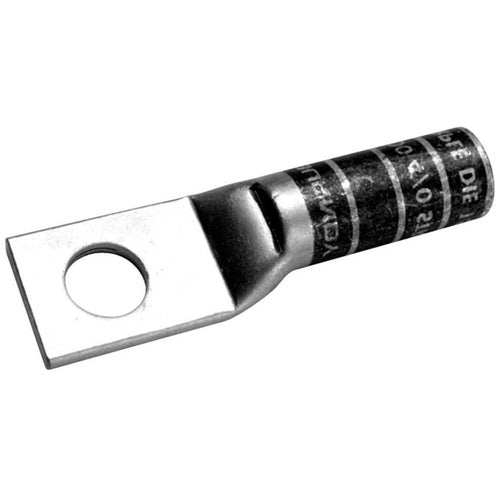

Burndy YAZV26TC12FX 1-Hole Compression Lug

Overview

Burndy YAZV26TC12FX 1-Hole Compression Lug

Product Specifications

• Catalog Description: 2/0 FLEX G,H,I,K,M,DLO, 2/0 AWG CU, ONE HOLE, 1/2 STUD SIZE, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLACK COLOR CODE, 13 DIE INDEX.
• Full Technical Description: Electro-Tin Plated Copper Material; Black Color; 3.05 Inch Overall Length; 1.5 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 325/24, 2/0 AWG (Weld Flex), 2/0 AWG Stranded Conductor Size; 1/2 Inch Stud Size; 13 Die Index; 0.93 Inch W X 0.13 Inch Thk Pad Size; 1 Pad Hole(S); Long, Skived, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-9/16 Inch; YAZV Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810241585
• SKU Name: bur yazv26tc12fx
