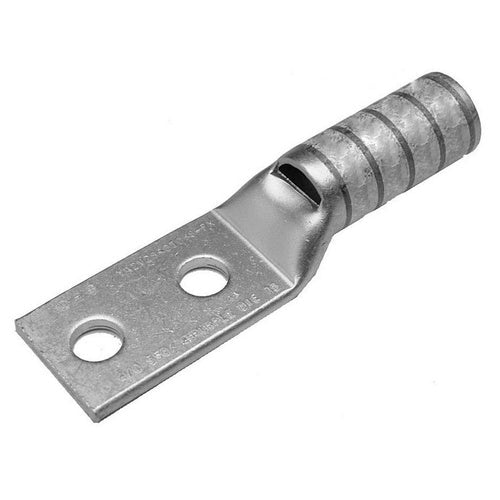

Burndy YAZV282TC14FX 4/0Awg 2-Hole Long Lug

Product Specifications

• UPC: 78181022856
• Number Of Pad Holes: 2
• Pad Hole Spacing: 0.62 Inch
• Stud Size: 1/4 Inch
• Color: Purple
• Die Index: 15
• Material: Tin Plated Copper
• Overall Length: 3.4 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Wire Strip Length 1-11/16 Inch
• Catalog Number: YAZV282TC14FX
• Brand Name: HYDENT[TM]
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 4/0 AWG Diesel Locomotive Cable (Code/Weld), 4/0 AWG Stranded (Flex)
• Barrel Type: Long, Skived, Straight
• Barrel Length: 1.62 Inch
• Pad Size: 1.14 Inch W x 0.15 Inch Thk
• Catalog Description: CU COMP TERMINAL FLEX COND, BVL ENTRY, 2 HOLE/W/INSPWINDOW, 4/0 WELD,4/0(550/#24)DLO FLEX, 4/0 AWG CODE, 600 V-35 KV, 1/4" STUD, 0.62" SPACING, LNG BBL.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Purple Color; 3.4 Inch Overall Length; 1.62 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 4/0 AWG Diesel Locomotive Cable (Code/Weld), 4/0 AWG Stranded (Flex) Conductor Size; 1/4 Inch Stud Size; 15 Die Index; 1.14 Inch W X 0.15 Inch Thk Pad Size; 2 Pad Hole(S); 0.62 Inch Pad Hole Spacing; Long, Skived, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Wire Strip Length 1-11/16 Inch
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121449
• UPC 12 Digit: 781810228562
• SKU Name: bur yazv282tc14fx
