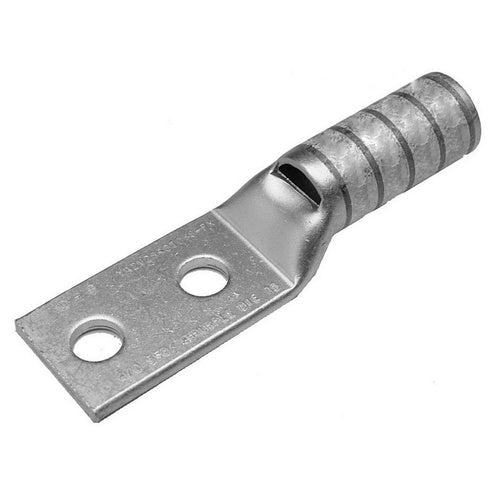

Burndy YAZV4C2TC38FX 4/0Awg 2-Hole Lug

Overview

Burndy YAZV4C2TC38FX 4/0Awg 2-Hole Lug

Product Specifications

• Catalog Description: 4 FLEX G,H,I,K,M,DLO, 4 AWG CU, TWO HOLE, 3/8 STUD SIZE, 1 HOLE SPACING, LONG BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, GRAY COLOR CODE, 8 OR 346 DIE INDEX.
• Full Technical Description: Electro Tin Plated Copper Material; Gray Color; 3.39 Inch Overall Length; 1.25 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 91/24 to 105/24, 4 AWG (Weld Flex), 4 AWG (Code) Conductor Size; 3/8 Inch Stud Size; 8/346 Die Index; 0.58 Inch W X 0.08 Inch Thk Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Long, Skived, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Beveled; Wire Strip Length 1 5/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YAZ-FX Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810175811
• SKU Name: bur yazv4c2tc38fx
