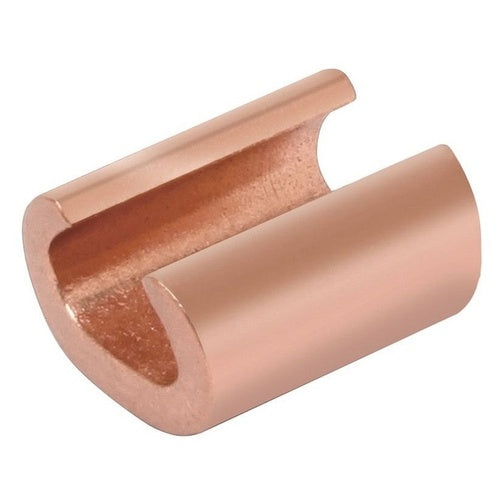

Burndy YC26C26 2/0 Copper Tap Connector

Overview

Burndy YC26C26 2/0 Copper Tap Connector

Product Specifications

• UPC: 78181011530
• Minimum Tap Conductor Size: 1/0 AWG Stranded
• Maximum Tap Conductor Size: 2/0 AWG Stranded
• Die Index: E/O
• Body Material: Wrot Copper
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Length 7/8 Inch
• Catalog Number: YC26C26
• Brand Name: CRIMPIT[TM]
• Model: YC-C
• Voltage Rating: 600 Volt to 35 Kilovolt
• Shape: C
• Conductor Material: Copper
• Minimum Run Conductor Size: 1/0 AWG Solid
• Maximum Run Conductor Size: 2/0 AWG Stranded
• Catalog Description: CU COMPRESSION C SHAPE COMPRESSION CONNECTOR, 600 VOLTS TO 35 KV, 1/0 STR. - 2/0 STR. (RUN & TAP).
• Category: Large Terminals & Connectors
• Full Technical Description: 1/0 AWG Solid min. Run Conductor Size; 2/0 AWG Stranded Max. Run Conductor Size; 1/0 AWG Stranded min. Tap Conductor Size; 2/0 AWG Stranded Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; Wrot Copper Body Material; E/O Die Index; Crimpit Brand; RoHS Compliant; Length 7/8 Inch; YC-C Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810115305
• SKU Name: bur yc26c26
