Overview

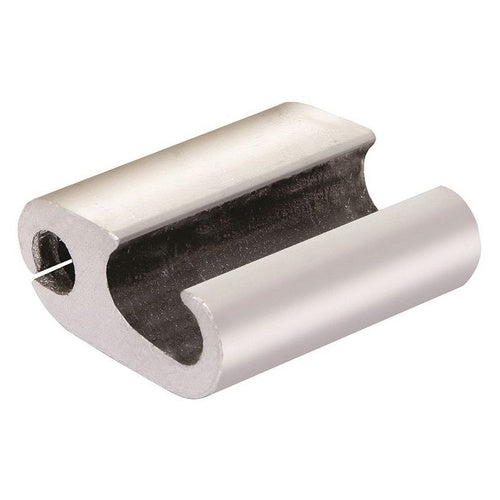

Burndy YC28U26 4/0 Univ Tap Connector

Product Specifications

• Catalog Description: FIGURE 6- SHAPED, WIDE RANGE-TAKING ALUMINUM COMPRESSION TAP CONNECTOR RUN: AL & CU: 1/0 - 4/0 KCMIL, ACSR: 1/0 - 4/0, TAP: 6 - 2/0 AWG, ACSR: 6 -1/0.
• Full Technical Description: 6 Shape; Aluminum/Acsr/Copper Conductor Material; Aluminum Body Material; H Die Index; 1/0 to 4/0 AWG ACSR Run Conductor Size; 6 to 1/0 AWG ACSR Tap Conductor Size; 6 AWG Solid Tap Conductor Size; 1/0 to 4/0 AWG Stranded Run Conductor Size; 1/0 AWG Stranded Tap Conductor Size; CRIMPIT[T], BURNDY[R] Brand; RoHS Compatible; Length 2 1/8 Inch; YC-U Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Cable To Cable Compression Overhead Tap
• UPC 12 Digit: 781810126479
• SKU Name: bur yc28u26
