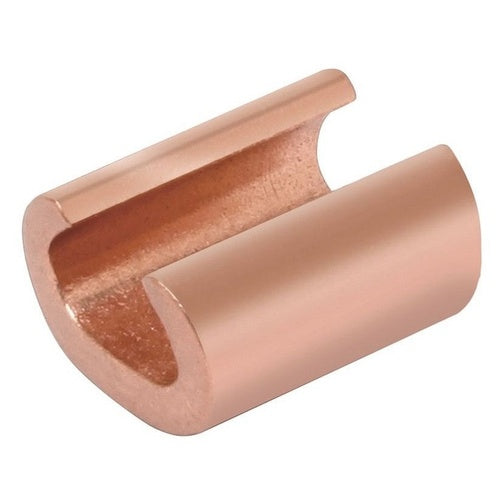

Burndy YC4C8 4Str Copper Tap Connector

Overview

Burndy YC4C8 4Str Copper Tap Connector

Product Specifications

• UPC: 78181011425
• Maximum Run Conductor Size: 6 AWG Solid, 4 AWG Stranded
• Minimum Tap Conductor Size: 8 AWG Solid/Stranded
• Maximum Tap Conductor Size: 8 AWG Solid/Stranded
• Die Index: BG or 5/8
• Body Material: Wrought High Conductivity Copper
• Approval: UL, CSA
• Additional Information: RoHS Compatible
• Catalog Number: YC4C8
• Brand Name: CRIMPIT[TM]
• Model: YC-C
• Voltage Rating: 600 V to 35 KV
• Shape: C
• Number Of Taps: 1
• Conductor Material: Copper
• Minimum Run Conductor Size: 6 AWG Solid, 4 AWG Stranded
• Catalog Description: CU COMPRESSION C SHAPE COMPRESSION CONNECTOR, 600 VOLTS TO 35 KV, RUN: 6 SOL. - 4 STR., TAP: 8 SOL. - 8 STR.
• Category: Large Terminals & Connectors
• Full Technical Description: 6 AWG Solid, 4 AWG Stranded min. Run Conductor Size; 6 AWG Solid, 4 AWG Stranded Max. Run Conductor Size; 8 AWG Solid/Stranded min. Tap Conductor Size; 8 AWG Solid/Stranded Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; Wrought High Conductivity Copper Body Material; BG or 5/8 Die Index; 1 Tap(S); CRIMPIT[TM] Brand; RoHS Compatible; YC-C Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810114254
• SKU Name: bur yc4c8
