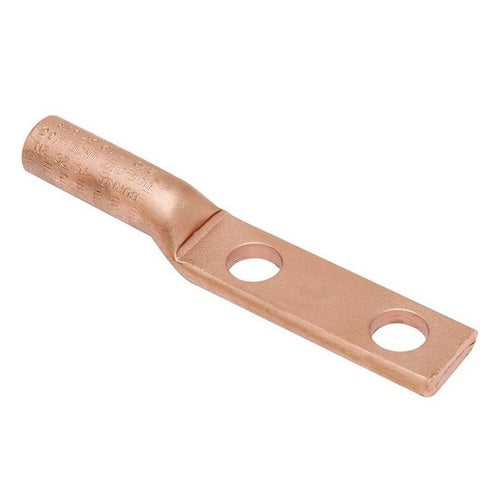

Burndy YCA26-2N 2/0 2-Hole Lug

Overview

Burndy YCA26-2N 2/0 2-Hole Lug

Product Specifications

• UPC: 78181001476
• Die Index: 166
• Overall Length: 5 1/4 INCH
• Stud Size: 9/16 INCH
• Additional Information: ROHS COMPATIBLE; STUD HOLE SPACING 1 3/4 INCH
• Catalog Number: YCA262N
• Brand Name: HYLUG[T], BURNDY[R]
• Model: YCA-2N
• Conductor Material: COPPER
• Aluminum/Copper Conductor Size: 2/0 AWG STRANDED (COPPER)
• Material: PURE COPPER
• Number Of Pad Holes: 2 NEMA
• Pad Size: 3 INCH L X 1 INCH W X 1/4 INCH THK
• Catalog Description: COPPER COMPRESSION LUG DESIGNED FOR TERMINATING COPPER CONDUCTORS TO SWITCH PADS AND OTHER SUBSTATION SWITCH YARD APPARATUS, 5-1/4 IN L.
• Category: Large Terminals & Connectors
• Full Technical Description: Pure Copper Material; 5 1/4 Inch Overall Length; Copper Conductor Material; 9/16 Inch Stud Size; 166 Die Index; 3 Inch L X 1 Inch W X 1/4 Inch Thk Pad Size; 2 NEMA Pad Hole(S); 2/0 AWG Stranded (Copper) Aluminum/Copper Conductor Size; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Stud Hole Spacing 1 3/4 Inch; YCA-2N Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Terminal
• Unspsc: 39121405
• UPC 12 Digit: 781810014769
• SKU Name: bur yca262n
