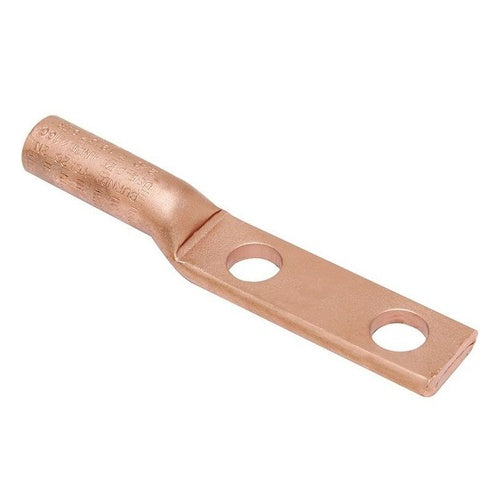

Burndy YCA28-2N 4/0Awg Hysplice

Overview

Burndy YCA28-2N 4/0Awg Hysplice

Product Specifications

• UPC: 78181001478
• Die Index: 168
• Overall Length: 5-3/8 Inch
• Stud Size: 9/16 Inch
• Additional Information: RoHS Compatible
• Catalog Number: YCA282N
• Brand Name: HYLUG[TM]
• Model: YCA-2N
• Conductor Material: Copper
• Aluminum/Copper Conductor Size: 4/0 AWG Stranded (Copper)
• Material: Copper
• Number Of Pad Holes: 2 NEMA
• Pad Size: 3 Inch L x 1-1/4 Inch W x 3/8 Inch Thk
• Catalog Description: COPPER COMPRESSION LUG DESIGNED FOR TERMINATING COPPER CONDUCTORS TO SWITCH PADS AND OTHER SUBSTATION SWITCH YARD APPARATUS, DIE INDEX: 168.
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Material; 5-3/8 Inch Overall Length; Copper Conductor Material; 9/16 Inch Stud Size; 168 Die Index; 3 Inch L X 1-1/4 Inch W X 3/8 Inch Thk Pad Size; 2 NEMA Pad Hole(S); 4/0 AWG Stranded (Copper) Aluminum/Copper Conductor Size; HYLUG[TM] Brand; RoHS Compatible; YCA-2N Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Terminal
• Unspsc: 39121405
• UPC 12 Digit: 781810014783
• SKU Name: bur yca282n
