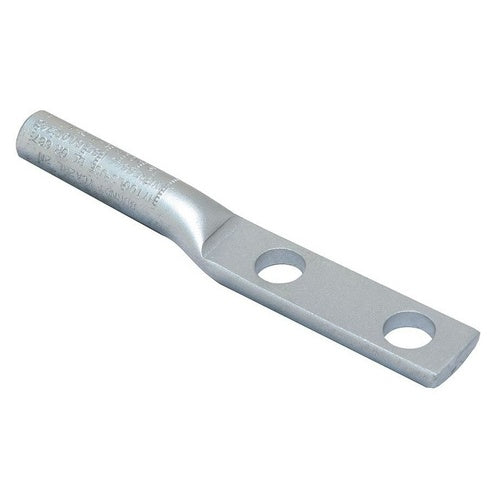

Burndy YCA39R-2N 556 Aluminum 2-Hole Lug Nem

Product Specifications

• UPC: 78181001668
• Die Index: 608
• Overall Length: 8 3/8 INCH
• Stud Size: 9/16 INCH
• Additional Information: ROHS COMPATIBLE; STUD HOLE SPACING 1 3/4 INCH
• Catalog Number: YCA39R2N
• Brand Name: HYLUG[T], BURNDY[R]
• Model: YCA-R-N
• Conductor Material: AAC/ACSR/AAAC
• Acsr Conductor Size: 556.5 KCMIL
• Material: ALUMINUM
• Number Of Pad Holes: 2 NEMA
• Pad Size: 3 INCH L X 2 1/8 INCH W X 1/2 INCH THK
• Catalog Description: AL COMPRESSION LUG DESIGNED FOR TERMINATING JUMPER LOOP AND EQUIPTMENT TAPS TO SWITCH PADS AND OTHER SUBSTATION SWITCH YARD APPARATUS, 8.31 IN L.
• Category: Large Terminals & Connectors
• Full Technical Description: Aluminum Material; 8 3/8 Inch Overall Length; Aac/Acsr/Aaac Conductor Material; 9/16 Inch Stud Size; 608 Die Index; 3 Inch L X 2 1/8 Inch W X 1/2 Inch Thk Pad Size; 2 NEMA Pad Hole(S); 556.5 kcmil ACSR Conductor Size; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Stud Hole Spacing 1 3/4 Inch; YCA-R-N Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Terminal
• Unspsc: 39121405
• UPC 12 Digit: 781810016688
• SKU Name: bur yca39r2n
