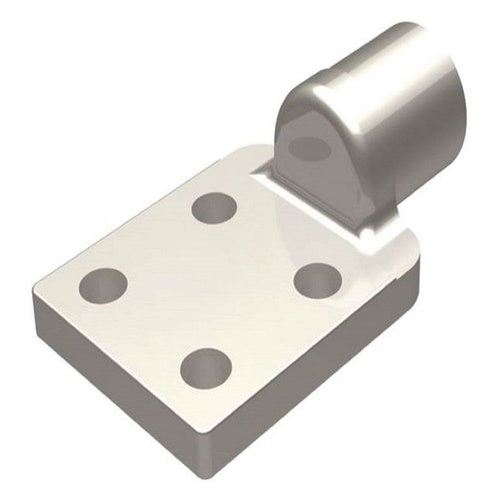

Burndy YCAB28-4N 4/0 Copper 4-Hole Lug

Overview

Burndy YCAB28-4N 4/0 Copper 4-Hole Lug

Product Specifications

• UPC: 78181001484
• Overall Length: 5-5/8 INCH
• Stud Size: 9/16 INCH
• Additional Information: PAD HOLE SPACING 1-3/4 INCH
• Catalog Number: YCAB284N
• Model: YCAB-4N
• Conductor Material: COPPER
• Aluminum/Copper Conductor Size: 4/0 AWG
• Material: COPPER
• Number Of Pad Holes: 4 NEMA
• Pad Size: 3 INCH L X 3 INCH W X 3/8 INCH THK
• Die Index: 168
• Catalog Description: COPPER COMPRESSION LUG DESIGNED FOR TERMINATING COPPER CONDUCTORS TO SWITCH PADS AND OTHER SUBSTATION SWITCH YARD APPARATUS, THICKNESS: 3/8 IN.
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Material; 5-5/8 Inch Overall Length; Copper Conductor Material; 9/16 Inch Stud Size; 168 Die Index; 3 Inch L X 3 Inch W X 3/8 Inch Thk Pad Size; 4 NEMA Pad Hole(S); 4/0 AWG Aluminum/Copper Conductor Size; Pad Hole Spacing 1-3/4 Inch; YCAB-4N Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Terminal
• Unspsc: 39121405
• UPC 12 Digit: 781810014844
• SKU Name: bur ycab284n
