Overview

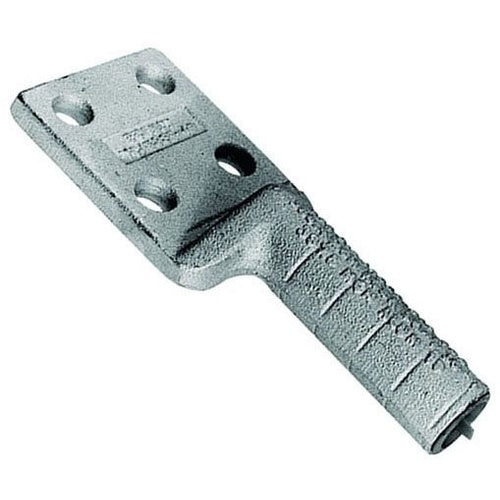

Burndy YCAK28R-4N 4/0 Aluminum 4-Hole Lug

Product Specifications

• Catalog Description: AL COMPRESSION LUG DESIGNED FOR TERMINATING JUMPER LOOP AND EQUIPTMENT TAPS TO SWITCH PADS AND OTHER SUBSTATION SWITCH YARD APPARATUS, 7.36. IN L.
• Category: Large Terminals & Connectors
• Full Technical Description: Aluminum Material; 7-3/8 Inch Overall Length; Acsr/Aac/Aaac/Aluminum Conductor Material; 9/16 Inch Stud Size; 249 Die Index; 3 Inch L X 3 Inch W X 3/8 Inch Thk Pad Size; 4 NEMA Pad Hole(S); 4/0 AWG ACSR Conductor Size; 4/0 AWG (Aluminum) Aluminum/Copper Conductor Size; HYLUG[TM] Brand; RoHS Compatible; AAAC Conductor Size 246.9 kcmil; YCAK-R-N Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Terminal
• Unspsc: 39121405
• UPC 12 Digit: 781810016749
• SKU Name: bur ycak28r4n
