Overview

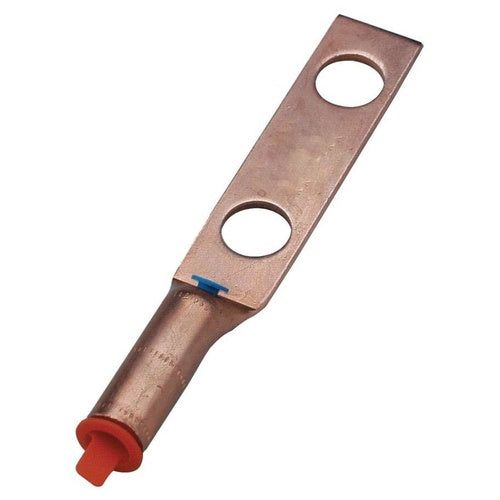

Burndy YGA6C2N Copper HYLUG 6 Str Nema

Product Specifications

• Catalog Description: HYLUG COPPER COMPRESSION TERMINAL FOR GROUNDING; 2-HOLE; 1/2" STUD; 1-3/4" SPACING; LONG BARREL; ACCOMMODATES: #6 AWG.
• Full Technical Description: Copper Material; 4.4 Inch Overall Length; 1.09 Inch Barrel Length; Copper Conductor Material; UL 467/486A, CSA Approval; 6 AWG Solid/Stranded Conductor Size; 1/2 Inch Stud Size; 7/374 Die Index; 0.83 Inch W X 0.12 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Straight Barrel Type; HYGROUND[R], HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Wire Strip Length 1-3/16 Inch; YGA Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• Unspsc: 39121432
• UPC 12 Digit: 781810091739
• SKU Name: bur yga6c2n
