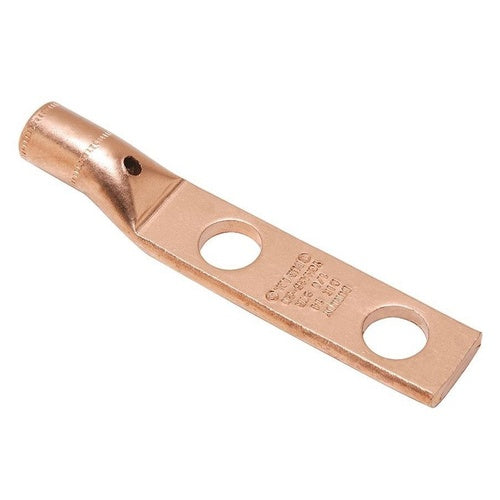

Burndy YGHA26-2N 2/0Awg 2-Hole Ground Terminal

Overview

Burndy YGHA26-2N 2/0Awg 2-Hole Ground Terminal

Product Specifications

• UPC: 78181022036
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Die Index: 15
• Material: Copper
• Overall Length: 4.38 Inch
• Approval: UL 467/468A, CSA
• Additional Information: RoHS Compliant; Type Heavy Duty, Irreversible, Grounding; With Inspection Probe Hole
• Catalog Number: YGHA262N
• Brand Name: HYLUG[TM], HYGROUND[R]
• Model: YGHA
• Conductor Material: Copper
• Conductor Size: 2/0 AWG Stranded
• Barrel Type: Short, Straight
• Barrel Length: 0.83 Inch
• Pad Size: 3 Inch Length x 0.97 Inch Width x 0.26 Inch Thickness
• Catalog Description: COPPER COMPRESSION LUG, HEAVY DUTY, 2 HOLE W/ INSPECTION PROBE, 2/0 AWG, 1/2" STUD, 1-3/4" STUD HOLE SPACING, SHORT BARREL.
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Material; 4.38 Inch Overall Length; 0.83 Inch Barrel Length; Copper Conductor Material; UL 467/468A, CSA Approval; 2/0 AWG Stranded Conductor Size; 1/2 Inch Stud Size; 15 Die Index; 3 Inch Length X 0.97 Inch Width X 0.26 Inch Thickness Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Short, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compliant; Type Heavy Duty, Irreversible, Grounding; With Inspection Probe Hole; YGHA Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810220368
• SKU Name: bur ygha262n
