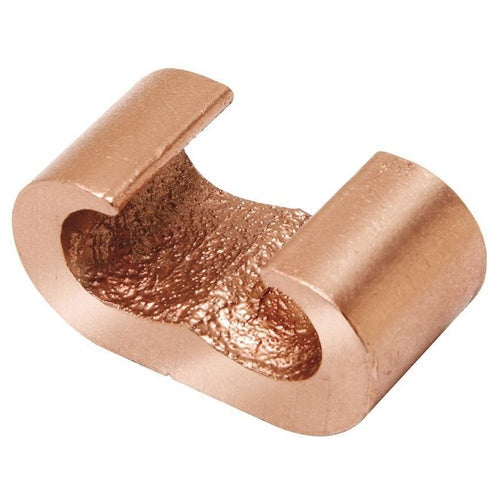

Burndy YGHC2C2 2Str Compression Ground Tap

Product Specifications

• UPC: 78181022101
• Maximum Tap Conductor Size: 2 AWG Stranded
• Die Index: C
• Body Material: Copper
• Approval: UL 96/467, CSA
• Additional Information: RoHS Compliant; Rod Size 1/4 Inch
• Catalog Number: YGHC2C2
• Brand Name: HYGROUND[R], HYTAP[TM]
• Model: YGHC-C
• Shape: C
• Conductor Material: Copper
• Minimum Run Conductor Size: 6 AWG Solid
• Maximum Run Conductor Size: 2 AWG Stranded
• Minimum Tap Conductor Size: 6 AWG Solid
• Catalog Description: COPPER COMPRESSION C CONNECTOR, 6 AWG(SOL) - 2 AWG(STR), 1/4" ROD(RUN) & 6 AWG(SOL) - 2 AWG(STR) (TAP).
• Category: Large Terminals & Connectors
• Full Technical Description: 6 AWG Solid min. Run Conductor Size; 2 AWG Stranded Max. Run Conductor Size; 6 AWG Solid min. Tap Conductor Size; 2 AWG Stranded Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL 96/467, CSA Approval; Copper Body Material; C Die Index; Hyground [R], Hytap Brand; RoHS Compliant; Rod Size 1/4 Inch; YGHC-C Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810221013
• SKU Name: bur yghc2c2
