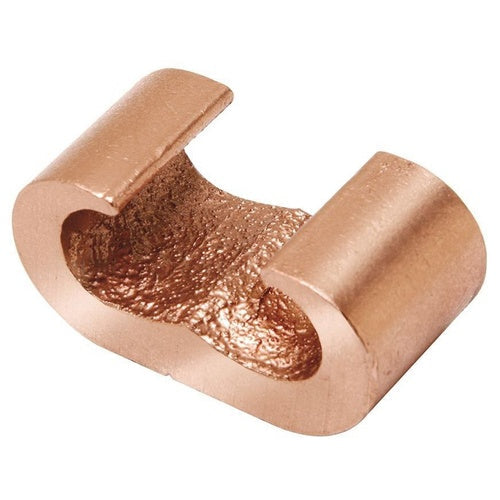

Burndy YGHC34C26 500Mcm Compression Ground Tap

Overview

Burndy YGHC34C26 500Mcm Compression Ground Tap

Product Specifications

• UPC: 78181022106
• Maximum Tap Conductor Size: 2/0 AWG Stranded
• Die Index: 1011
• Body Material: Copper
• Approval: UL 96/467, CSA
• Additional Information: RoHS Compliant; Rod Size 3/4 Inch
• Catalog Number: YGHC34C26
• Brand Name: HYGROUND[R], HYTAP[TM]
• Model: YGHC-C
• Shape: C
• Conductor Material: Copper
• Minimum Run Conductor Size: 300 KCMIL
• Maximum Run Conductor Size: 500 KCMIL
• Minimum Tap Conductor Size: 6 AWG Solid
• Catalog Description: COPPER COMPRESSION C CONNECTOR, 300-500 KCMIL, 3/4" ROD (RUN) & 6 AWG(SOL) - 2/0 AWG(STR) (TAP).
• Category: Large Terminals & Connectors
• Full Technical Description: 300 kcmil min. Run Conductor Size; 500 kcmil Max. Run Conductor Size; 6 AWG Solid min. Tap Conductor Size; 2/0 AWG Stranded Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL 96/467, CSA Approval; Copper Body Material; 1011 Die Index; HYGROUND[R], HYTAP[TM] Brand; RoHS Compliant; Rod Size 3/4 Inch; YGHC-C Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810221068
• SKU Name: bur yghc34c26
