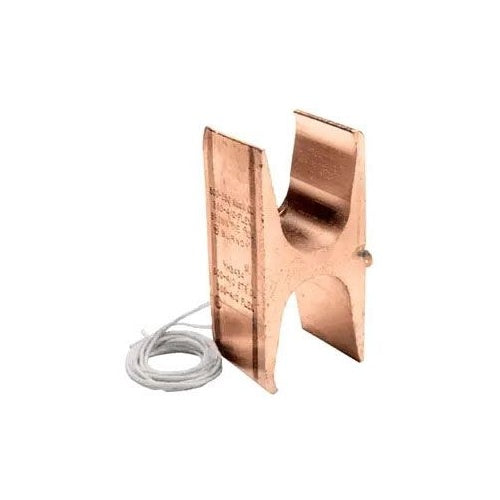

Burndy YH2C2C Tap Connector

Overview

Burndy YH2C2C Tap Connector

Product Specifications

• UPC: 78181001386
• Minimum Tap Conductor Size: 14 AWG (TAP2/TAP3), 14 AWG (Flex, TAP2/TAP3), 8 AWG (Flex, TAP1), 6 AWG Solid/Stranded (TAP1)
• Maximum Tap Conductor Size: 8 AWG (TAP2/TAP3), 8 AWG (Flex, TAP2/TAP3), 2 AWG (Flex, TAP1), 2 AWG Solid/Stranded (TAP1)
• Die Index: C
• Body Material: Electro Tin Plated Copper
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Color Code Brown
• Catalog Number: YH2C2C
• Brand Name: CRIMPIT[TM]
• Model: YH
• Shape: H
• Number Of Taps: 3
• Conductor Material: Copper
• Minimum Run Conductor Size: 8 AWG (Flex), 6 AWG Solid/Stranded
• Maximum Run Conductor Size: 2 AWG (Flex), 2 AWG Solid/Stranded
• Catalog Description: COPPER COMPRESSION H TAP, 2-6 AWG (MAIN & TAP 1), 8-14 AWG (TAP 2 & TAP 3), TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: 8 AWG (Flex), 6 AWG Solid/Stranded min. Run Conductor Size; 2 AWG (Flex), 2 AWG Solid/Stranded Max. Run Conductor Size; 14 AWG (TAP2/TAP3), 14 AWG (Flex, TAP2/TAP3), 8 AWG (Flex, TAP1), 6 AWG Solid/Stranded (TAP1) min. Tap Conductor Size; 8 AWG (TAP2/TAP3), 8 AWG (Flex, TAP2/TAP3), 2 AWG (Flex, TAP1), 2 AWG Solid/Stranded (TAP1) Max. Tap Conductor Size; H Shape; Copper Conductor Material; UL, CSA Approval; Electro Tin Plated Copper Body Material; C Die Index; 3 Tap(S); CRIMPIT[TM] Brand; RoHS Compatible; Color Code Brown; YH Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810013861
• SKU Name: bur yh2c2c
