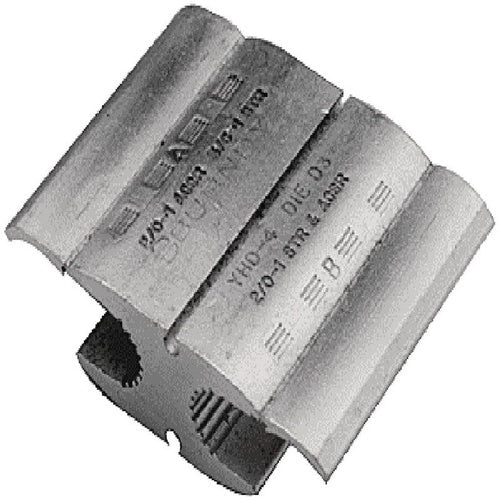

Burndy YHD-6 H-Tap Connector (Wr279)(P)

Product Specifications

• UPC: 78181013913
• Maximum Tap Conductor Size: 3/0 AWG Solid, 2/0 AWG Stranded, 2/0 AWG (ACSR), 2/0 AWG (Compact ACSR), 3/0 AWG (Compact Copper/Aluminum)
• Die Index: D3
• Body Material: Aluminum
• Approval: CSA
• Additional Information: RoHS Compliant
• Catalog Number: YHD6
• Brand Name: LOKTAP[TM]
• Model: YHD
• Shape: H
• Conductor Material: Copper/Aluminum/ACSR
• Minimum Run Conductor Size: 250 KCMIL Solid, 3/0 AWG Stranded, 3/0 AWG (ACSR), 3/0 AWG (Compact ACSR), 4/0 AWG (Compact Copper/Aluminum)
• Maximum Run Conductor Size: 300 KCMIL Solid, 4/0 AWG Stranded, 4/0 AWG (ACSR), 266.8 KCMIL (Compact ACSR), 266 KCMIL (Compact Copper/Aluminum)
• Minimum Tap Conductor Size: 2/0 AWG Solid, 1 AWG Stranded, 1 AWG (ACSR), 1/0 AWG (Compact ACSR/Copper/Aluminum)
• Catalog Description: COMPRESSION LINE TAP CONNECTOR FOR ALUMMINUM TO COPPER AND ALUMINUM TO ALUMINUM APPLICATIONS,1.42 H,2.25 L,.83 W.
• Category: Large Terminals & Connectors
• Full Technical Description: 250 kcmil Solid, 3/0 AWG Stranded, 3/0 AWG (ACSR), 3/0 AWG (Compact ACSR), 4/0 AWG (Compact Copper/Aluminum) min. Run Conductor Size; 300 kcmil Solid, 4/0 AWG Stranded, 4/0 AWG (ACSR), 266.8 kcmil (Compact ACSR), 266 kcmil (Compact Copper/Aluminum) Max. Run Conductor Size; 2/0 AWG Solid, 1 AWG Stranded, 1 AWG (ACSR), 1/0 AWG (Compact Acsr/Copper/Aluminum) min. Tap Conductor Size; 3/0 AWG Solid, 2/0 AWG Stranded, 2/0 AWG (ACSR), 2/0 AWG (Compact ACSR), 3/0 AWG (Compact Copper/Aluminum) Max. Tap Conductor Size; H Shape; Copper/Aluminum/Acsr Conductor Material; CSA Approval; Aluminum Body Material; D3 Die Index; LOKTAP[TM] Brand; RoHS Compliant; YHD Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810139134
• SKU Name: bur yhd6
