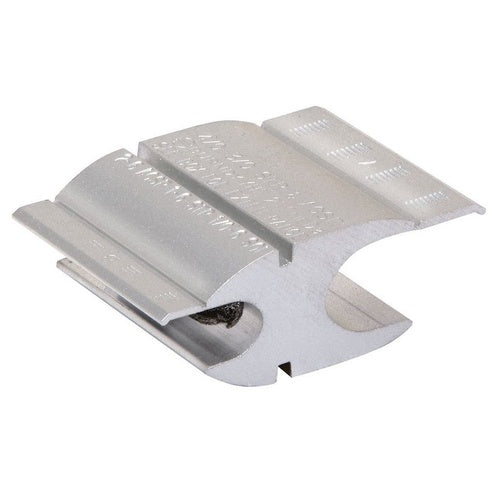

Burndy YHN-500 500Mcm Aluminum/Copper Tap Connector

Overview

Burndy YHN-500 500Mcm Aluminum/Copper Tap Connector

Product Specifications

• UPC: 78181013945
• Minimum Tap Conductor Size: 6 AWG (Copper/Aluminum, Compact), 6 AWG (ACSR/Compressed ACSR), 6 AWG Solid/Stranded
• Maximum Tap Conductor Size: 2/0 AWG (ACSR/Compressed ACSR), 2/0 AWG Stranded, 3/0 AWG (Copper/Aluminum, Compact), 3/0 AWG Solid
• Die Index: N
• Body Material: Aluminum
• Approval: RUS
• Additional Information: RoHS Compatible; Size 2 Inch L x 1.28 Inch W x 2 Inch H
• Catalog Number: YHN500
• Brand Name: HYCRIMP[TM]
• Model: YHN
• Shape: H
• Number Of Taps: 1
• Conductor Material: Copper/Aluminum/ACSR
• Minimum Run Conductor Size: 4/0 AWG (ACSR), 4/0 AWG Stranded, 250 KCMIL (Copper/Aluminum, Compact), 266 KCMIL (Compressed ACSR)
• Maximum Run Conductor Size: 477 KCMIL (ACSR), 500 KCMIL Stranded, 556 KCMIL (Copper/Aluminum, Compact), 556 KCMIL (Compressed ACSR)
• Catalog Description: COMPRESSION LINE TAP FOR COPPER, AL OR ACSR AND COMPACT CONDUCTORS,WIRE DIAMETER RANGE,GROOVE A(RUN):0.52-0.81.
• Category: Large Terminals & Connectors
• Full Technical Description: 4/0 AWG (ACSR), 4/0 AWG Stranded, 250 kcmil (Copper/Aluminum, Compact), 266 kcmil (Compressed ACSR) min. Run Conductor Size; 477 kcmil (ACSR), 500 kcmil Stranded, 556 kcmil (Copper/Aluminum, Compact), 556 kcmil (Compressed ACSR) Max. Run Conductor Size; 6 AWG (Copper/Aluminum, Compact), 6 AWG (Acsr/Compressed ACSR), 6 AWG Solid/Stranded min. Tap Conductor Size; 2/0 AWG (Acsr/Compressed ACSR), 2/0 AWG Stranded, 3/0 AWG (Copper/Aluminum, Compact), 3/0 AWG Solid Max. Tap Conductor Size; H Shape; Copper/Aluminum/Acsr Conductor Material; RUS Approval; Aluminum Body Material; N Die Index; 1 Tap(S); HYCRIMP[TM] Brand; RoHS Compatible; Size 2 Inch L X 1.28 Inch W X 2 Inch H; YHN Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810139455
• SKU Name: bur yhn500
