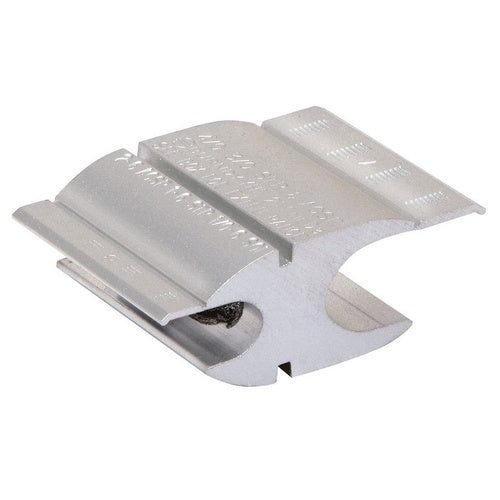

Burndy YHN-525 500Mcm Aluminum/Copper Tap Connector

Overview

Burndy YHN-525 500Mcm Aluminum/Copper Tap Connector

Product Specifications

• UPC: 78181013950
• Minimum Tap Conductor Size: 4/0 AWG (ACSR), 4/0 AWG Stranded, 250 KCMIL (Copper/Aluminum, Compact), 266.8 KCMIL (Compressed ACSR)
• Maximum Tap Conductor Size: 477 KCMIL (ACSR), 500 KCMIL Stranded, 556 KCMIL (Copper/Aluminum, Compact), 556.5 KCMIL (Compressed ACSR)
• Die Index: N
• Body Material: Aluminum
• Approval: RUS
• Additional Information: RoHS Compatible; Size 4.5 Inch L x 1.23 Inch W x 1.824 Inch H
• Catalog Number: YHN525
• Brand Name: HYCRIMP[TM]
• Model: YHN
• Shape: H
• Number Of Taps: 1
• Conductor Material: Copper/Aluminum/ACSR
• Minimum Run Conductor Size: 4/0 AWG (ACSR), 4/0 AWG Stranded, 250 KCMIL (Copper/Aluminum, Compact), 266.8 KCMIL (Compressed ACSR)
• Maximum Run Conductor Size: 477 KCMIL (ACSR), 500 KCMIL Stranded, 556 KCMIL (Copper/Aluminum, Compact), 556.5 KCMIL (Compressed ACSR)
• Catalog Description: COMPRESSION LINE TAP FOR COPPER, AL OR ACSR AND COMPACT CONDUCTORS,GROOVE A(RUN) ACSR:4/0 (6/1) - 477.0 (18/1).
• Category: Large Terminals & Connectors
• Full Technical Description: 4/0 AWG (ACSR), 4/0 AWG Stranded, 250 kcmil (Copper/Aluminum, Compact), 266.8 kcmil (Compressed ACSR) min. Run Conductor Size; 477 kcmil (ACSR), 500 kcmil Stranded, 556 kcmil (Copper/Aluminum, Compact), 556.5 kcmil (Compressed ACSR) Max. Run Conductor Size; 4/0 AWG (ACSR), 4/0 AWG Stranded, 250 kcmil (Copper/Aluminum, Compact), 266.8 kcmil (Compressed ACSR) min. Tap Conductor Size; 477 kcmil (ACSR), 500 kcmil Stranded, 556 kcmil (Copper/Aluminum, Compact), 556.5 kcmil (Compressed ACSR) Max. Tap Conductor Size; H Shape; Copper/Aluminum/Acsr Conductor Material; RUS Approval; Aluminum Body Material; N Die Index; 1 Tap(S); HYCRIMP[TM] Brand; RoHS Compatible; Size 4.5 Inch L X 1.23 Inch W X 1.824 Inch H; YHN Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810139509
• SKU Name: bur yhn525
