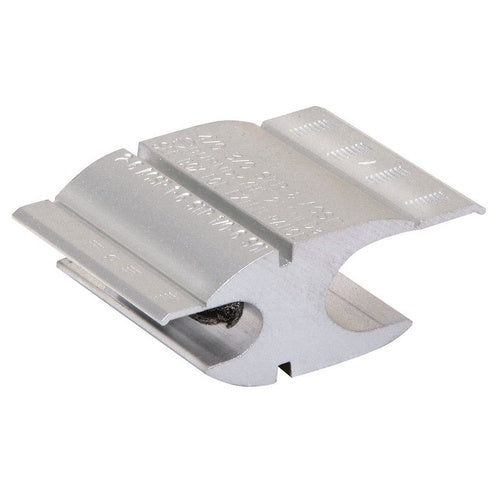

Burndy YHN600 500Mcm Aluminum/Copper Tap Connector

Overview

Burndy YHN600 500Mcm Aluminum/Copper Tap Connector

Product Specifications

• Catalog Description: COMPRESSION LINE TAP FOR COPPER, AL OR ACSR AND COMPACT CONDUCTORS,WIRE DIAMETER RANGE,GROOVE A(RUN):0.57-0.81.
• Full Technical Description: 250 kcmil Stranded, 266 kcmil (ACSR), 300 kcmil (Copper/Aluminum, Compact), 300 kcmil (Compressed ACSR) min. Run Conductor Size; 477 kcmil (ACSR), 500 kcmil Stranded, 556 kcmil (Copper/Aluminum, Compact), 556 kcmil (Compressed ACSR) Max. Run Conductor Size; 250 kcmil Stranded, 266 kcmil (ACSR), 300 kcmil (Copper/Aluminum, Compact), 300 kcmil (Compressed ACSR), 336 kcmil Solid min. Tap Conductor Size; 336.4 kcmil (ACSR), 350 kcmil Stranded, 397 kcmil (Copper/Aluminum, Compact), 397 kcmil (Compressed ACSR), 400 kcmil Solid Max. Tap Conductor Size; H Shape; Copper/Aluminum/Acsr Conductor Material; RUS Approval; Aluminum Body Material; N Die Index; 1 Tap(S); HYCRIMP[TM] Brand; RoHS Compatible; Size 3.5 Inch L X 1.28 Inch W X 2 Inch H; YHN Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Tap
• UPC 12 Digit: 781810139608
• SKU Name: bur yhn600
