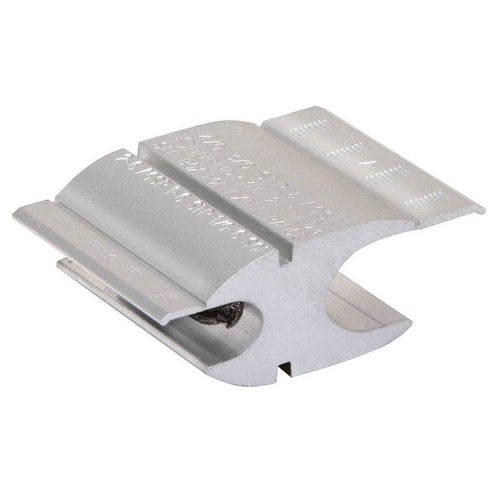

Burndy YHO-100 1Awg Aluminum/Copper Tap Connector

Overview

Burndy YHO-100 1Awg Aluminum/Copper Tap Connector

Product Specifications

• UPC: 78181013900
• Minimum Tap Conductor Size: 6 AWG (ACSR), 6 AWG (Copper/Aluminum/ACSR, Compact), 6 AWG Solid/Stranded
• Maximum Tap Conductor Size: 3 AWG (ACSR, Compact), 2 AWG (ACSR), 1 AWG (Copper/Aluminum, Compact), 1 AWG Solid/Stranded
• Die Index: O
• Body Material: Aluminum
• Additional Information: Size 1.5 Inch L x 0.7 Inch W x 1.12 Inch H
• Catalog Number: YHO100
• Brand Name: HYCRIMP[TM]
• Model: YHO
• Shape: H
• Number Of Taps: 1
• Conductor Material: Copper/Aluminum/ACSR
• Minimum Run Conductor Size: 6 AWG (ACSR), 6 AWG (Copper/Aluminum/ACSR, Compact), 6 AWG Solid/Stranded
• Maximum Run Conductor Size: 3 AWG (ACSR, Compact), 2 AWG (ACSR), 1 AWG (Copper/Aluminum, Compact), 1 AWG Solid/Stranded
• Catalog Description: AL OVERHEAD COMPRESSION TAP CONNECTOR, ACCOMMODATES: AL, CU, ACSR, AAAC AND STEEL, LENGTH: 1.25 IN.
• Category: Large Terminals & Connectors
• Full Technical Description: 6 AWG (ACSR), 6 AWG (Copper/Aluminum/Acsr, Compact), 6 AWG Solid/Stranded min. Run Conductor Size; 3 AWG (ACSR, Compact), 2 AWG (ACSR), 1 AWG (Copper/Aluminum, Compact), 1 AWG Solid/Stranded Max. Run Conductor Size; 6 AWG (ACSR), 6 AWG (Copper/Aluminum/Acsr, Compact), 6 AWG Solid/Stranded min. Tap Conductor Size; 3 AWG (ACSR, Compact), 2 AWG (ACSR), 1 AWG (Copper/Aluminum, Compact), 1 AWG Solid/Stranded Max. Tap Conductor Size; H Shape; Copper/Aluminum/Acsr Conductor Material; Aluminum Body Material; O Die Index; 1 Tap(S); HYCRIMP[TM] Brand; Size 1.5 Inch L X 0.7 Inch W X 1.12 Inch H; YHO Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810139004
• SKU Name: bur yho100
