Product information
Overview

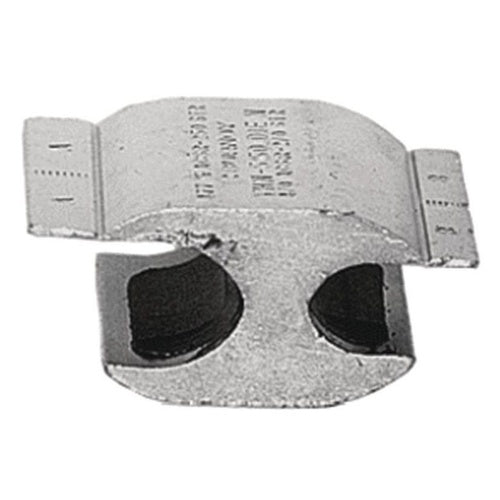

Burndy YHR-800 900Mcm Aluminum/Copper Tap Connector
Product Specifications
- UPC: 78181013975
- Minimum Tap Conductor Size: 1/0 AWG (ACSR), 2/0 AWG (Compressed ACSR), 2/0 AWG Stranded, 3/0 AWG (Copper/Aluminum, Compact), 3/0 AWG Solid
- Maximum Tap Conductor Size: 336.4 KCMIL (ACSR), 350 KCMIL Solid/Stranded, 397.5 KCMIL (Copper/Aluminum, Compact), 397.5 KCMIL (Compressed ACSR)
- Die Index: K-R
- Body Material: Aluminum
- Approval: RUS
- Additional Information: RoHS Compatible; Size 3.5 Inch L x 1.74 Inch W x 3 Inch H
- Catalog Number: YHR800
- Brand Name: HYCRIMP[TM]
- Model: YHR
- Shape: H
- Number Of Taps: 1
- Conductor Material: Copper/Aluminum/ACSR
- Minimum Run Conductor Size: 556.5 KCMIL (ACSR), 600 KCMIL Stranded, 795 KCMIL (Copper/Aluminum, Compact), 795 KCMIL (Compressed ACSR)
- Maximum Run Conductor Size: 795 KCMIL (ACSR), 900 KCMIL Stranded, 954 KCMIL (Copper/Aluminum, Compact), 954 KCMIL (Compressed ACSR)
- Catalog Description: COMPRESSION LINE TAP FOR COPPER, AL OR ACSR AND COMPACT CONDUCTORS,WIRE DIAMETER RANGE,GROOVE A(RUN):0.879-1.108.
- Category: Large Terminals & Connectors
- Full Technical Description: 556.5 kcmil (ACSR), 600 kcmil Stranded, 795 kcmil (Copper/Aluminum, Compact), 795 kcmil (Compressed ACSR) min. Run Conductor Size; 795 kcmil (ACSR), 900 kcmil Stranded, 954 kcmil (Copper/Aluminum, Compact), 954 kcmil (Compressed ACSR) Max. Run Conductor Size; 1/0 AWG (ACSR), 2/0 AWG (Compressed ACSR), 2/0 AWG Stranded, 3/0 AWG (Copper/Aluminum, Compact), 3/0 AWG Solid min. Tap Conductor Size; 336.4 kcmil (ACSR), 350 kcmil Solid/Stranded, 397.5 kcmil (Copper/Aluminum, Compact), 397.5 kcmil (Compressed ACSR) Max. Tap Conductor Size; H Shape; Copper/Aluminum/Acsr Conductor Material; RUS Approval; Aluminum Body Material; K-R Die Index; 1 Tap(S); HYCRIMP[TM] Brand; RoHS Compatible; Size 3.5 Inch L X 1.74 Inch W X 3 Inch H; YHR Model
- Manufacturer: Burndy Products
- Manufacturer Brand: Burndy Products
- Sub Category: Compression Cable Tap
- Unspsc: 39121427
- UPC 12 Digit: 781810139752
- SKU Name: bur yhr800
