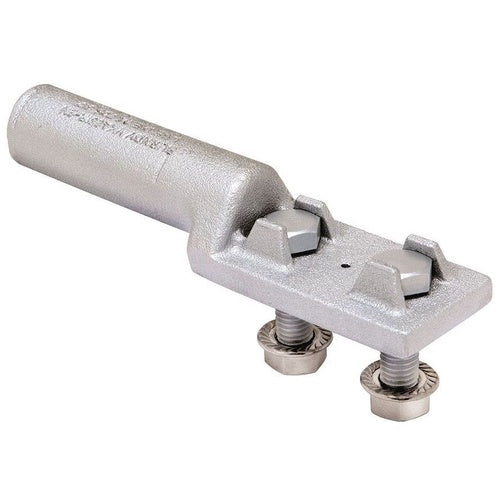

Burndy YKA26R2N 2/0Awg Disconnect Lug

Product Specifications

• Catalog Description: CAST ALUMINIUM DISCONNECTABLE TERMINAL, 2 PAD HOLES, 2/0 ACSR, 2/0 (7, 19) CU&AL, FLAT SIDED BRRL, L OR 251 INDEX
• Full Technical Description: Aluminum Material; 6 Inch Overall Length; Acsr/Aluminum/Copper Conductor Material; 1/2 Inch-13 TPI Stud Size; L/251 Die Index; 3 Inch L X 1-7/8 Inch W X 3/8 Inch Thk Pad Size; 2 Pad Hole(S); 2/0 AWG ACSR Conductor Size; 2/0 AWG Aluminum/Copper Conductor Size; YKA-R-2N Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Terminal
• UPC 12 Digit: 781810017005
• SKU Name: bur yka26r2n
