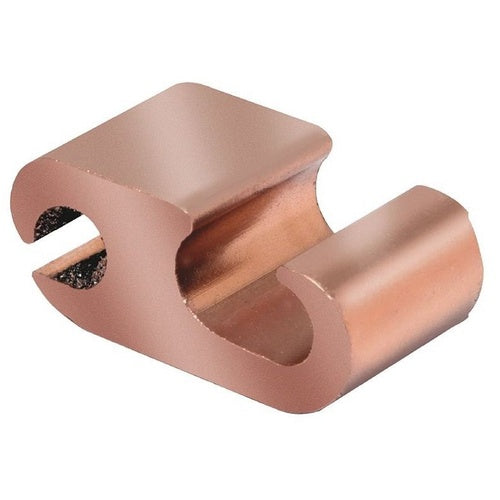

Burndy YP28C28 4/0 Copper Tap Connector

Product Specifications

• UPC: 78181011795
• Stranded Tap Conductor Size: 4/0 AWG
• Die Index: D
• Body Material: Copper
• Approval: UL
• Additional Information: RoHS Compatible; Diameter 1 Inch
• Catalog Number: YP28C28
• Brand Name: CRIMPIT[TM]
• Model: YP-C
• Shape: 6
• Conductor Material: Copper
• Solid Run Conductor Size: 6 AWG
• Stranded Run Conductor Size: 4/0 AWG
• Solid Tap Conductor Size: 2/0 AWG
• Catalog Description: FIGURE 6 - SHAPED, WIDE RANGE-TAKING CU COMPRESSION TAP CONNECTOR FOR PRIMARY SERVICE TAPS AND SECONDARY SERVICE DROPS, WIDTH: 1.00.
• Category: Large Terminals & Connectors
• Full Technical Description: 6 Shape; Copper Conductor Material; UL Approval; Copper Body Material; D Die Index; 6 AWG Solid Run Conductor Size; 2/0 AWG Solid Tap Conductor Size; 4/0 AWG Stranded Run Conductor Size; 4/0 AWG Stranded Tap Conductor Size; CRIMPIT[TM] Brand; RoHS Compatible; Diameter 1 Inch; YP-C Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Cable to Cable Compression Overhead Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810117958
• SKU Name: bur yp28c28
