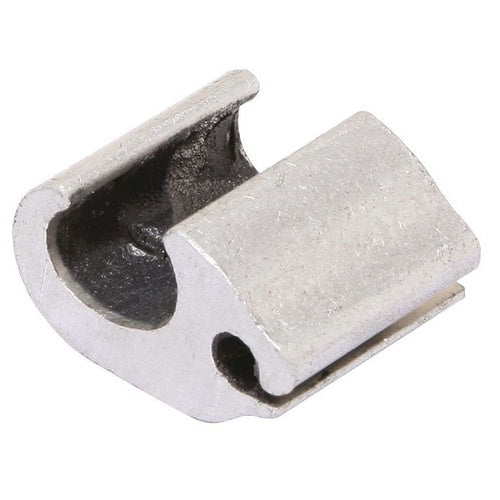

Burndy YPC26R8U 2/0 Aluminum/Copper Tap Connector

Overview

Burndy YPC26R8U 2/0 Aluminum/Copper Tap Connector

Product Specifications

• UPC: 78181013737
• Solid Tap Conductor Size: 14 AWG
• Stranded Tap Conductor Size: 8 AWG
• Die Index: O
• Body Material: Aluminum
• Additional Information: RoHS Compatible; Length 3/4 Inch
• Catalog Number: YPC26R8U
• Brand Name: CRIMPIT[TM]
• Model: YPC-R-U
• Shape: 6
• Conductor Material: Aluminum/Copper/ACSR
• Solid Run Conductor Size: 1 to 3/0 AWG, 1/0 to 3/0 AWG (Aluminum, Compressed)
• Stranded Run Conductor Size: 1 to 3/0 AWG, 1/0 to 3/0 AWG (Aluminum, Compressed)
• Acsr Run Conductor Size: 1 to 3/0 AWG (ACSR), 1 to 3/0 AWG (Compressed)
• Catalog Description: COMPACT COMPRESSION CONNECTOR DESIGNED TO TAP SMALL LIGHTING WIRES FROM SECONDARIES
• Category: Large Terminals & Connectors
• Full Technical Description: 6 Shape; Aluminum/Copper/Acsr Conductor Material; Aluminum Body Material; O Die Index; 1 to 3/0 AWG (ACSR), 1 to 3/0 AWG (Compressed) ACSR Run Conductor Size; 1 to 3/0 AWG, 1/0 to 3/0 AWG (Aluminum, Compressed) Solid Run Conductor Size; 14 AWG Solid Tap Conductor Size; 1 to 3/0 AWG, 1/0 to 3/0 AWG (Aluminum, Compressed) Stranded Run Conductor Size; 8 AWG Stranded Tap Conductor Size; CRIMPIT[TM] Brand; RoHS Compatible; Length 3/4 Inch; YPC-R-U Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Cable to Cable Compression Overhead Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810137376
• SKU Name: bur ypc26r8u
