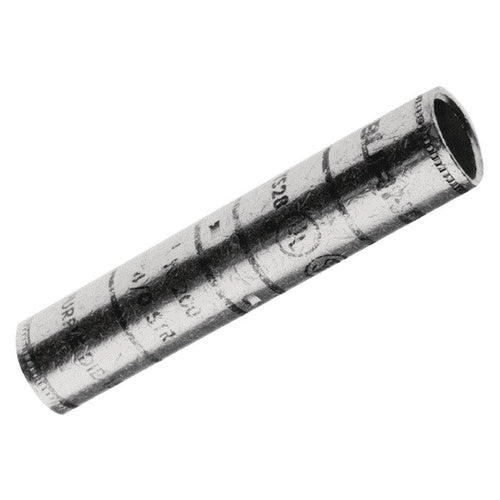

Burndy YS25 Copper Compression Splice

Overview

Burndy YS25 Copper Compression Splice

Product Specifications

• UPC: 78181050750
• Barrel Type: Long with Bevelled Entry, Chamfered
• Length: 3.08 Inch
• Outer Diameter: 0.51 Inch
• Body Material: Electro Tin Plated Copper
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 1-7/16 Inch; Die Index 12/348; Temperature Rating 90 Deg C
• Catalog Number: YS25
• Brand Name: HYLINK[TM]
• Model: YS
• Type: Butt with Center Wire Stop
• Voltage Rating: 35 Kilovolt
• Conductor Size: 1/0 AWG Stranded
• Conductor Material: Copper
• Color Code: Pink
• Catalog Description: 1/0 AWG CU, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, PINK COLOR CODE, 12 OR 348 DIE INDEX
• Category: Large Terminals & Connectors
• Full Technical Description: Butt With Center Wire Stop Type; 3.08 Inch; 0.51 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; Electro Tin Plated Copper Body Material; 1/0 AWG Stranded Conductor Size; Pink Color Code; Long With Bevelled Entry, Chamfered Barrel Type; Hylink Brand; RoHS Compliant; Wire Strip Length 1-7/16 Inch; Die Index 12/348; Temperature Rating 90 Deg C; YS Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810507506
• SKU Name: bur ys25
