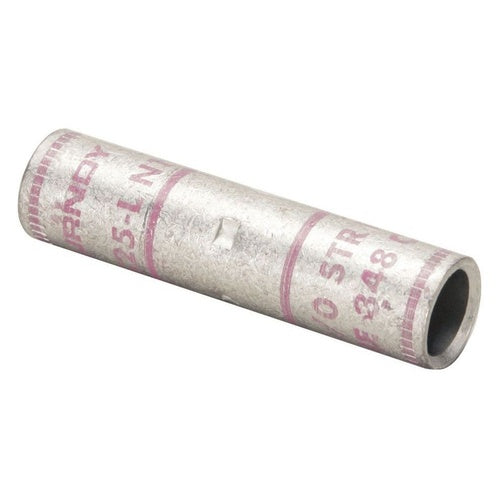

Burndy YS32-L 400Mcm Butt Splice

Overview

Burndy YS32-L 400Mcm Butt Splice

Product Specifications

• UPC: 78181050845
• Barrel Type: Standard with Chamfered
• Length: 2.74 Inch
• Outer Diameter: 0.95 Inch
• Body Material: Electro-Tin Plated Copper
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Wire Strip Length 1-1/4 Inch; Die Index 19 or 470; Temperature Rating 90 Deg C
• Catalog Number: YS32L
• Brand Name: HYLINK[TM]
• Model: YS-L
• Type: Butt with Centre Wire Stop
• Voltage Rating: 600 V to 35 KV
• Conductor Size: 400 KCMIL
• Conductor Material: Copper
• Color Code: Blue
• Catalog Description: 400 KCMIL CU, STANDARD BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLUE COLOR CODE, 19 OR 470 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt With Centre Wire Stop Type; 2.74 Inch; 0.95 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; Electro-Tin Plated Copper Body Material; 400 kcmil Conductor Size; Blue Color Code; Standard With Chamfered Barrel Type; HYLINK[TM] Brand; RoHS Compatible; Wire Strip Length 1-1/4 Inch; Die Index 19 or 470; Temperature Rating 90 Deg C; YS-L Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810508459
• SKU Name: bur ys32l
