Overview

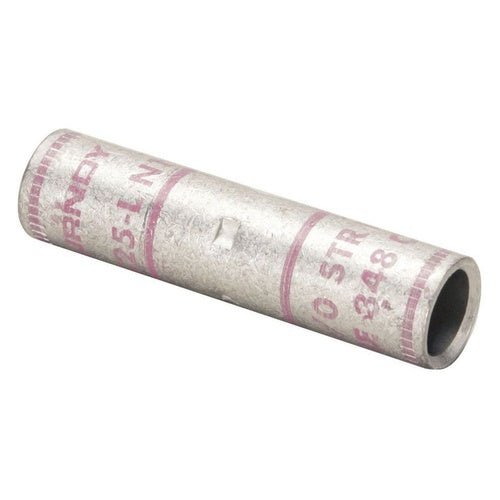

Burndy YS3CLBOX 3Awg Butt Splice

Product Specifications

• UPC: 78181055540
• Barrel Type: Standard with Chamfered End
• Length: 2.05 Inch
• Body Material: Electro Tin Plated Copper
• Approval: UL 468A/468B, CSA
• Additional Information: ROHS COMPATIBLE; WIRE STRIP LENGTH 15/16 INCH; DIE INDEX 9; APPLICATION LIMITED SPACE
• Catalog Number: YS3CLBOX
• Brand Name: HYLINK[TM]
• Model: YS-L
• Type: Butt
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Size: 3 AWG Stranded, 2 AWG Solid
• Conductor Material: Copper
• Color Code: White
• Catalog Description: 3 AWG CU, STANDARD BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, WHITE COLOR CODE, 9 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt Type; 2.05 Inch; Copper Conductor Material; UL 468A/468B, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; Electro Tin Plated Copper Body Material; 3 AWG Stranded, 2 AWG Solid Conductor Size; White Color Code; Standard With Chamfered End Barrel Type; HYLINK[TM] Brand; RoHS Compatible; Wire Strip Length 15/16 Inch; Die Index 9; Application Limited Space; YS-L Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810555408
• SKU Name: bur ys3clbox
