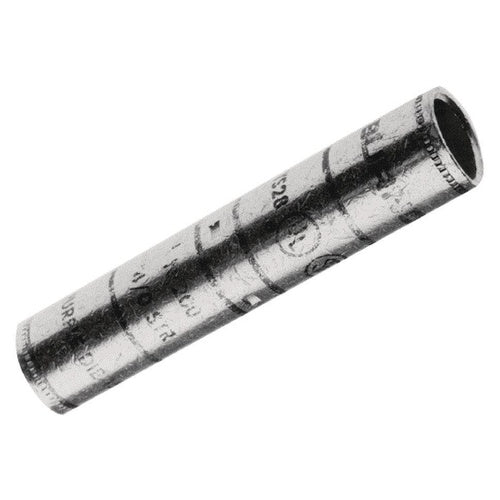

Burndy YS44 1000Mcm Copper Butt Splice

Overview

Burndy YS44 1000Mcm Copper Butt Splice

Product Specifications

• UPC: 78181052760
• Barrel Type: Long with Bevelled Entry, Chamfered
• Length: 6.55 Inch
• Outer Diameter: 1.49 Inch
• Body Material: Electro Tin Plated Copper
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 3 Inch; Die Index 27; Temperature Rating 90 Deg C
• Catalog Number: YS44
• Brand Name: HYLINK[TM]
• Model: YS
• Type: Butt with Center Wire Stop
• Voltage Rating: 35 Kilovolt
• Conductor Size: 1000 KCMIL
• Conductor Material: Copper
• Color Code: White
• Catalog Description: 1000 KCMIL CU, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, WHITE COLOR CODE, 27 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt With Center Wire Stop Type; 6.55 Inch; 1.49 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; Electro Tin Plated Copper Body Material; 1000 kcmil Conductor Size; White Color Code; Long With Bevelled Entry, Chamfered Barrel Type; HYLINK[TM] Brand; RoHS Compliant; Wire Strip Length 3 Inch; Die Index 27; Temperature Rating 90 Deg C; YS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810527603
• SKU Name: bur ys44

Resources

• Technical Line Drawing
• Manufacturer Spec Sheet
