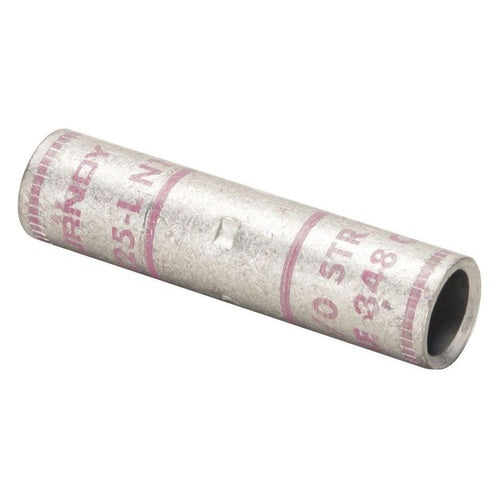

Burndy YS4C-LBOX 4Str Copper Compression Splice

Overview

Burndy YS4C-LBOX 4Str Copper Compression Splice

Product Specifications

• UPC: 78181055550
• Barrel Type: Standard with Chamfered
• Length: 1.75 Inch
• Outer Diameter: 0.34 Inch
• Body Material: Electro-Tin Plated Copper
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 7/8 Inch; Die Index 8/346; Temperature Rating 90 Deg C
• Catalog Number: YS4CLBOX
• Brand Name: HYLINK[TM]
• Model: Type YS-L
• Type: Butt with Centre Wire Stop
• Voltage Rating: 600 V to 35 KV
• Conductor Size: 4 AWG Stranded
• Conductor Material: Copper
• Color Code: Gray
• Catalog Description: 4 AWG CU, STANDARD BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, GRAY COLOR CODE, 8 OR 346 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt With Centre Wire Stop Type; 1.75 Inch; 0.34 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; Electro-Tin Plated Copper Body Material; 4 AWG Stranded Conductor Size; Gray Color Code; Standard With Chamfered Barrel Type; Hylink Brand; RoHS Compliant; Wire Strip Length 7/8 Inch; Die Index 8/346; Temperature Rating 90 Deg C; TYPE YS-L Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810555507
• SKU Name: bur ys4clbox
