Overview

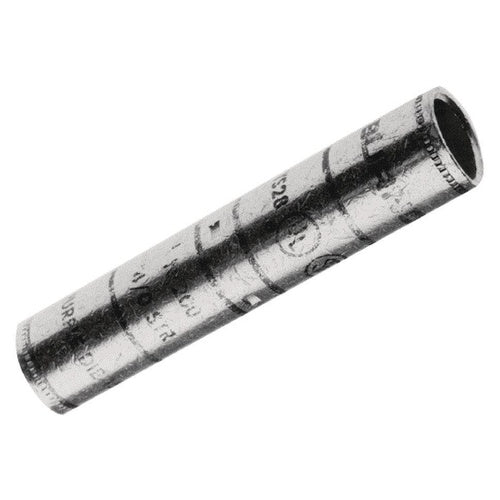

Burndy YS6C 6Awg Copper Butt Splice K421639

Product Specifications

• UPC: 78181050740
• Barrel Type: Long with Bevelled Entry, Chamfered
• Length: 2.38 Inch
• Outer Diameter: 0.29 Inch
• Body Material: Electro Tin Plated Copper
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 1-3/16 Inch; Die Index 7/374; Temperature Rating 90 Deg C
• Catalog Number: YS6C
• Brand Name: HYLINK[TM]
• Model: YS
• Type: Butt with Center Wire Stop
• Voltage Rating: 35 Kilovolt
• Conductor Size: 6 AWG Stranded
• Conductor Material: Copper
• Color Code: Blue
• Catalog Description: 6 AWG CU, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLUE COLOR CODE, 7 OR 374 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt With Center Wire Stop Type; 2.38 Inch; 0.29 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; Electro Tin Plated Copper Body Material; 6 AWG Stranded Conductor Size; Blue Color Code; Long With Bevelled Entry, Chamfered Barrel Type; Hylink Brand; RoHS Compliant; Wire Strip Length 1-3/16 Inch; Die Index 7/374; Temperature Rating 90 Deg C; YS Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810507407
• SKU Name: bur ys6c
