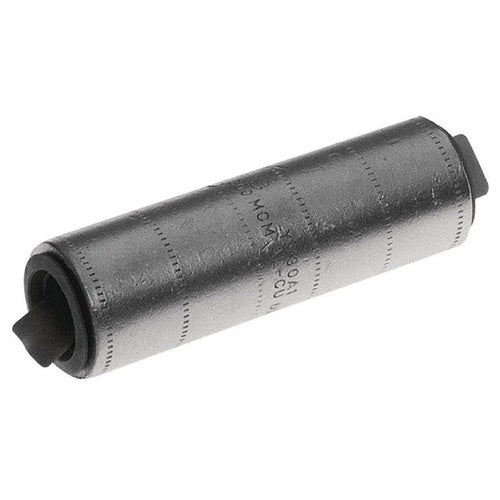

Burndy YS8CA1 8Awg Aluminum/Copper Butt Splice

Overview

Burndy YS8CA1 8Awg Aluminum/Copper Butt Splice

Product Specifications

• UPC: 78181075690
• Barrel Type: Standard with Belled End, Chamfered
• Length: 1.44 Inch
• Outer Diameter: 0.3 Inch
• Body Material: Electro-Tin Plated Aluminum
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Wire Strip Length 5/8 Inch; Temperature Rating 90 Deg C; Used On Aluminum to Aluminum, Aluminum to Copper, Copper to Copper Conductor Combination
• Catalog Number: YS8CA1
• Brand Name: HYLINK[TM]
• Model: YS-A
• Type: Butt with Centre Wire Stop
• Voltage Rating: 600 V to 35 KV
• Conductor Size: 8 AWG (Aluminum), 8 AWG Stranded (Copper)
• Conductor Material: Aluminum/Copper
• Color Code: Blue
• Catalog Description: 8 AWG AL SPLICE, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, BLUE COLOR CODE, 374 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt With Centre Wire Stop Type; 1.44 Inch; 0.3 Inch Outer Diameter; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; Electro-Tin Plated Aluminum Body Material; 8 AWG (Aluminum), 8 AWG Stranded (Copper) Conductor Size; Blue Color Code; Standard With Belled End, Chamfered Barrel Type; HYLINK[TM] Brand; RoHS Compatible; Wire Strip Length 5/8 Inch; Temperature Rating 90 Deg C; Used on Aluminum to Aluminum, Aluminum to Copper, Copper to Copper Conductor Combination; YS-A Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810756904
• SKU Name: bur ys8ca1
