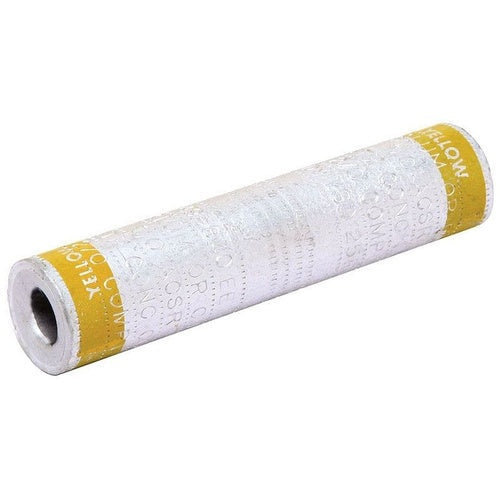

Burndy YSD26R25R 2/0-1 Aluminum/Copper Service Entrance Compression Sleeve

Overview

Burndy YSD26R25R 2/0-1 Aluminum/Copper Service Entrance Compression Sleeve

Product Specifications

• Catalog Description: AL COMPRESSION SLEEVE WITH SOLID CENTER BARRIER, DESIGNED FOR COMMERCIAL AND HEAVY RESIDENTIAL SERVICES, COLOR CODE: GRAY (SIDE A), YELLOW (SIDE B).
• Full Technical Description: Aluminum Material; 4 Inch; ACSR, Aluminum, AAAC, Copper Conductor Material; Gray (Side A), Yellow (Side B) Color Code; 249, K-840 Die Index; 1/0 AWG Stranded, 2/0 AWG Compact (Aluminum) Side B Al/Cu Conductor Size; 2/0 AWG Stranded, 3/0 AWG Compact (Aluminum) Side A Al/Cu Conductor Size; 1/0 AWG Side B ACSR Conductor Size; 2/0 AWG Side A ACSR Conductor Size; LINKIT[TM] Brand; RoHS Compatible; Approval RUS; Diameter 15/16 Inch; YSD Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Service Entrance Sleeve
• UPC 12 Digit: 781810144107
• SKU Name: bur ysd26r25r
