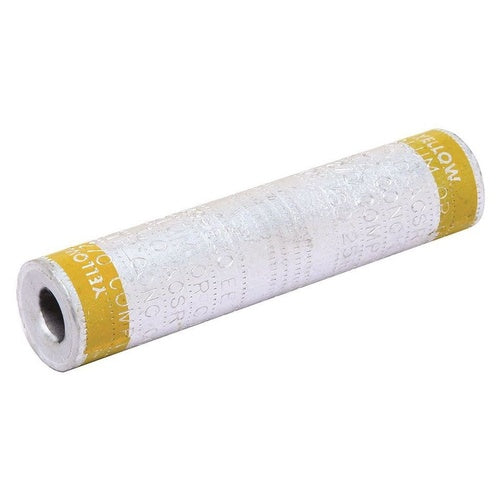

Burndy YSD26R2R 2/0-2 Aluminum/Copper Service Entrance Compression Sleeve

Product Specifications

• Catalog Description: ALUMINUM COMPRESSION SLEEVE WITH SOLID CENTER BARRIER, DESIGNED FOR COMMERCIAL AND HEAVY RESIDENTIAL SERVICES.
• Full Technical Description: Aluminum Material; 4 Inch; ACSR, Aluminum, AAAC, Copper Conductor Material; Gray (Side A), Red (Side B) Color Code; 249, K-840 Die Index; 1 AWG Solid, 2 AWG Stranded, 1/0 AWG Compact (Aluminum) Side B Al/Cu Conductor Size; 2/0 AWG Stranded, 3/0 AWG Compact (Aluminum) Side A Al/Cu Conductor Size; 2 AWG Side B ACSR Conductor Size; 2/0 AWG Side A ACSR Conductor Size; LINKIT[TM] Brand; RoHS Compatible; Approval RUS; Diameter 15/16 Inch; YSD Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Service Entrance Sleeve
• UPC 12 Digit: 781810144008
• SKU Name: bur ysd26r2r
