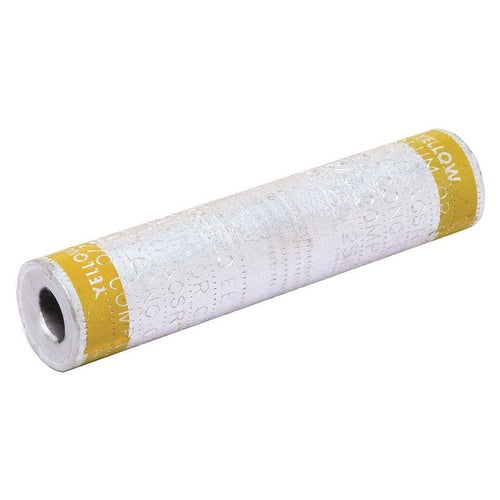

Burndy YSD28R28R 4/0-4/0 Aluminum/Copper Sleeve

Overview

Burndy YSD28R28R 4/0-4/0 Aluminum/Copper Sleeve

Product Specifications

• UPC: 78181014640
• Side B Al/Cu Conductor Size: 4/0 AWG Stranded, 300 KCMIL Aluminum Compact
• Color Code: Pink
• Die Index: 249, K-840
• Length: 4 Inch
• Additional Information: RoHS Compliant; Approval RUS
• Catalog Number: YSD28R28R
• Brand Name: LINKIT[TM]
• Model: YSD
• Material: Aluminum
• Conductor Material: ACSR, Aluminum, Copper
• Side A Acsr Conductor Size: 4/0 AWG
• Side A Al/Cu Conductor Size: 4/0 AWG Stranded, 300 KCMIL Aluminum Compact
• Side B Acsr Conductor Size: 4/0 AWG
• Catalog Description: AL COMPRESSION SLEEVE WITH SOLID CENTER BARRIER, DESIGNED FOR COMMERCIAL AND HEAVY RESIDENTIAL SERVICES, COLOR CODE: PINK (SIDE A), PINK (SIDE B).
• Category: Large Terminals & Connectors
• Full Technical Description: Aluminum Material; 4 Inch; ACSR, Aluminum, Copper Conductor Material; Pink Color Code; 249, K-840 Die Index; 4/0 AWG Stranded, 300 kcmil Aluminum Compact Side B Al/Cu Conductor Size; 4/0 AWG Stranded, 300 kcmil Aluminum Compact Side A Al/Cu Conductor Size; 4/0 AWG Side B ACSR Conductor Size; 4/0 AWG Side A ACSR Conductor Size; LINKIT[TM] Brand; RoHS Compliant; Approval RUS; YSD Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Service Entrance Sleeve
• Unspsc: 39121449
• UPC 12 Digit: 781810146408
• SKU Name: bur ysd28r28r
