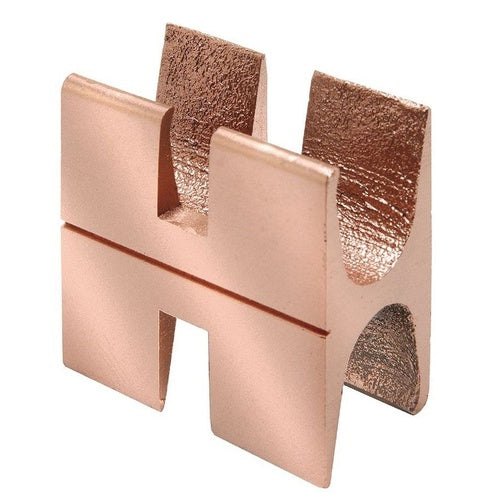

Burndy YSH2929 250-2 Copper Double Htap

Overview

Burndy YSH2929 250-2 Copper Double Htap

Product Specifications

• UPC: 78181003696
• Maximum Run Conductor Size: 250 KCMIL Stranded
• Minimum Tap Conductor Size: 2 AWG
• Maximum Tap Conductor Size: 250 KCMIL
• Die Index: 654
• Body Material: Electro Tin Plated Copper
• Additional Information: RoHS Compatible; Size 3 Inch L x 0.9 Inch W x 1.85 Inch H; Wire Strip Length 1-1/2 Inch; Color Code Purple; Application High Voltage Power Cable
• Catalog Number: YSH2929
• Brand Name: CRIMPIT[TM]
• Model: YSH
• Voltage Rating: 15 KV
• Shape: H
• Number Of Taps: 1
• Conductor Material: Copper
• Minimum Run Conductor Size: 2 AWG Stranded
• Catalog Description: COPPER SPLIT COMPRESSION WYE TAP CONNECTOR, 250-2 (4/0-2) (TAP), PROVIDES MAXIMUM DESIGN AND INSTALLATION FLEXIBILITY.
• Category: Large Terminals & Connectors
• Full Technical Description: 2 AWG Stranded min. Run Conductor Size; 250 kcmil Stranded Max. Run Conductor Size; 2 AWG min. Tap Conductor Size; 250 kcmil Max. Tap Conductor Size; H Shape; Copper Conductor Material; 15 kV Voltage Rating; Electro Tin Plated Copper Body Material; 654 Die Index; 1 Tap(S); CRIMPIT[TM] Brand; RoHS Compatible; Size 3 Inch L X 0.9 Inch W X 1.85 Inch H; Wire Strip Length 1-1/2 Inch; Color Code Purple; Application High Voltage Power Cable; YSH Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810036969
• SKU Name: bur ysh2929
