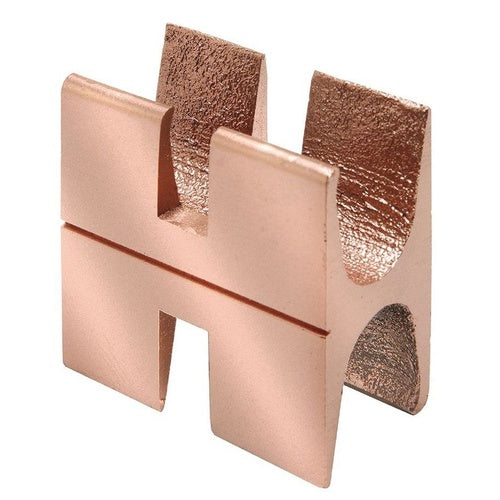

Burndy YSHG3434 Double H-Tap Connector

Overview

Burndy YSHG3434 Double H-Tap Connector

Product Specifications

• UPC: 78181012969
• Minimum Tap Conductor Size: 4/0 AWG
• Maximum Tap Conductor Size: 400 KCMIL
• Die Index: 1104
• Body Material: High Conductivity Copper
• Approval: UL
• Additional Information: RoHS Compatible; Size 2.44 Inch L x 2.43 Inch W; Rod Size 3/4 Inch; Application Direct Burial in Earth, Concrete
• Catalog Number: YSHG3434
• Brand Name: HYGROUND[R]
• Model: YSHG
• Shape: H
• Number Of Taps: 1
• Conductor Material: Copper
• Minimum Run Conductor Size: 250 KCMIL Stranded
• Maximum Run Conductor Size: 400 KCMIL Stranded
• Catalog Description: COPPER COMPRESSION DOUBLE H- TAP CONNECTOR, 4/0 AWG - 400 KCMIL (TAP), # 6 REBAR/ 3/4" GROUND ROD/ 400 TO 250 KCMIL CU CABLE.
• Category: Large Terminals & Connectors
• Full Technical Description: 250 kcmil Stranded min. Run Conductor Size; 400 kcmil Stranded Max. Run Conductor Size; 4/0 AWG min. Tap Conductor Size; 400 kcmil Max. Tap Conductor Size; H Shape; Copper Conductor Material; UL Approval; High Conductivity Copper Body Material; 1104 Die Index; 1 Tap(S); HYGROUND[R] Brand; RoHS Compatible; Size 2.44 Inch L X 2.43 Inch W; Rod Size 3/4 Inch; Application Direct Burial in Earth, Concrete; YSHG Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810129692
• SKU Name: bur yshg3434
